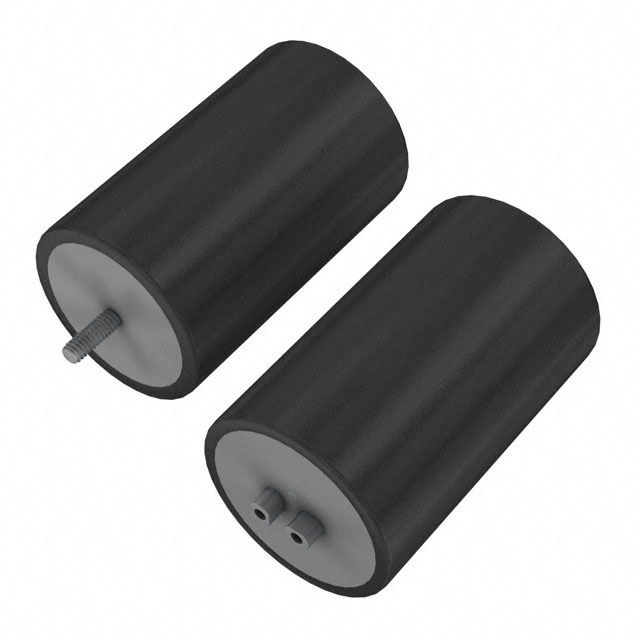

PEH200OO427AMB2

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 420V, 20% +TOL, 20% -TOL, 2700UF, STUD MOUNT, CAN, ROHS COMPLIANT

Search across all available documentation for this part.

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 420V, 20% +TOL, 20% -TOL, 2700UF, STUD MOUNT, CAN, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	PEH200OO427AMB2

Applications	General Purpose
Capacitance	2700 µF
ESR (Equivalent Series Resistance)	24 mOhm
Height - Seated (Max) [Max]	107 mm
Height - Seated (Max) [Max]	4.213 in
Impedance	12 mOhms
Lead Spacing	1.122 in
Lead Spacing	28.5 mm
Lifetime @ Temp.	15000 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Screw Terminals
Polarization	Polar
Ripple Current @ Low Frequency	12.4 A
Size / Dimension [diameter]	66.6 mm
Size / Dimension [diameter]	2.622 in
Tolerance	20 %
Voltage - Rated	420 V

Part	ESR (Equivalent Series Resistance)	Capacitance	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Impedance	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Lead Spacing	Lead Spacing	Applications	Tolerance	Polarization
KEMET PEH200OO427AMB2	24 mOhm	2700 µF	Radial Can - Screw Terminals	107 mm	4.213 in	420 V	66.6 mm	2.622 in	15000 Hrs	12 mOhms	12.4 A	85 °C	-40 °C	Chassis Mount	1.122 in	28.5 mm	General Purpose	20 %	Polar

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2700 µF 420 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 24mOhm @ 100Hz 15000 Hrs @ 85°C
