ECLAMP2410P.TCT
ActiveSemtech Corporation
TRANSIENT SUPPRESSOR DIODE ARRAY,UNIDIRECTIONAL,5V V(RWM),LLCC
Deep-Dive with AI
Search across all available documentation for this part.
ECLAMP2410P.TCT
ActiveSemtech Corporation
TRANSIENT SUPPRESSOR DIODE ARRAY,UNIDIRECTIONAL,5V V(RWM),LLCC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ECLAMP2410P.TCT |
|---|---|
| Applications | Data Lines for Mobile Devices |
| ESD Protection | True |
| Filter Order | 2nd |
| Height [z] | 0.026 in |
| Height [z] | 0.65 mm |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

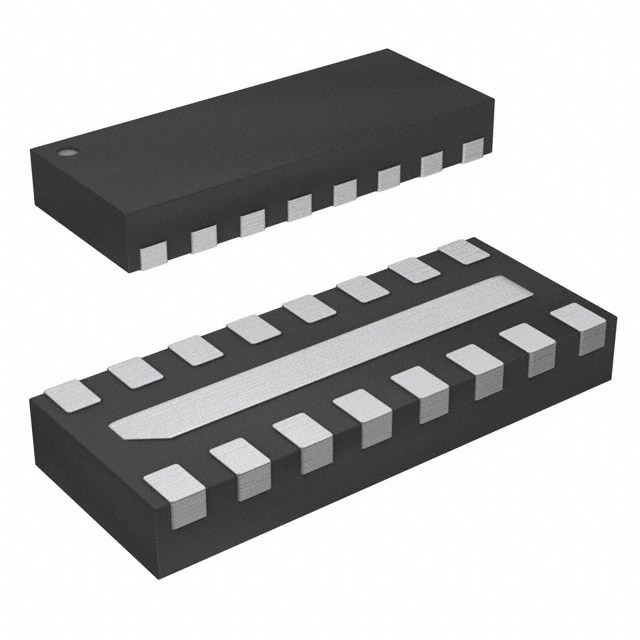

| Package / Case | 16-UFDFN Exposed Pad |
| Resistance - Channel (Ohms) | 45 Ohms |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Technology | RC (Pi) |
| Type | Low Pass |
| Values | 12 pF, 45 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.47 | |
| 10 | $ 1.20 | |||
| 100 | $ 0.93 | |||
| 500 | $ 0.79 | |||
| 1000 | $ 0.64 | |||
| Digi-Reel® | 1 | $ 1.47 | ||
| 10 | $ 1.20 | |||
| 100 | $ 0.93 | |||
| 500 | $ 0.79 | |||
| 1000 | $ 0.64 | |||
| Tape & Reel (TR) | 3000 | $ 0.61 | ||
| 6000 | $ 0.58 | |||
| 9000 | $ 0.55 | |||
Description
General part information
ECLAMP2410 Series
RC (Pi) EMI Filter 2nd Order Low Pass 6 Channel R = 45Ohms, C = 12pF 16-UFDFN Exposed Pad
Documents
Technical documentation and resources
No documents available
