RF1111X103K500KX102T

Active

Knowles Johanson Manufacturing

CAP CER 10000PF 50V BX 1111

Search across all available documentation for this part.

Active

Knowles Johanson Manufacturing

CAP CER 10000PF 50V BX 1111

Technical Specifications

Parameters and characteristics for this part

Part	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Applications	Features	Mounting Type	Voltage - Rated	Tolerance	Temperature Coefficient	Capacitance
Knowles Johanson Manufacturing RF1111X393K500KX102T	0.102 "	2.59 mm	0.11 in	2.79 mm	0.11 in	2.79 mm	-55 °C	125 °C	1111 (2828 Metric)	General Purpose	High Temperature	MLCC Surface Mount	50 VDC	10 %	BX	0.039 µF
Knowles Johanson Manufacturing RF1111X223K500KX102T	0.102 "	2.59 mm	0.11 in	2.79 mm	0.11 in	2.79 mm	-55 °C	125 °C	1111 (2828 Metric)	General Purpose		MLCC Surface Mount	50 VDC	10 %	BX	0.022 µF
Knowles Johanson Manufacturing RF1111X103K500KX102T	0.102 "	2.59 mm	0.11 in	2.79 mm	0.11 in	2.79 mm	-55 °C	125 °C	1111 (2828 Metric)	General Purpose		MLCC Surface Mount	50 VDC	10 %	BX	10000 pF
Knowles Johanson Manufacturing RF1111X683K500KX102T	0.102 "	2.59 mm	0.11 in	2.79 mm	0.11 in	2.79 mm	-55 °C	125 °C	1111 (2828 Metric)	General Purpose	High Temperature	MLCC Surface Mount	50 VDC	10 %	BX	0.068 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

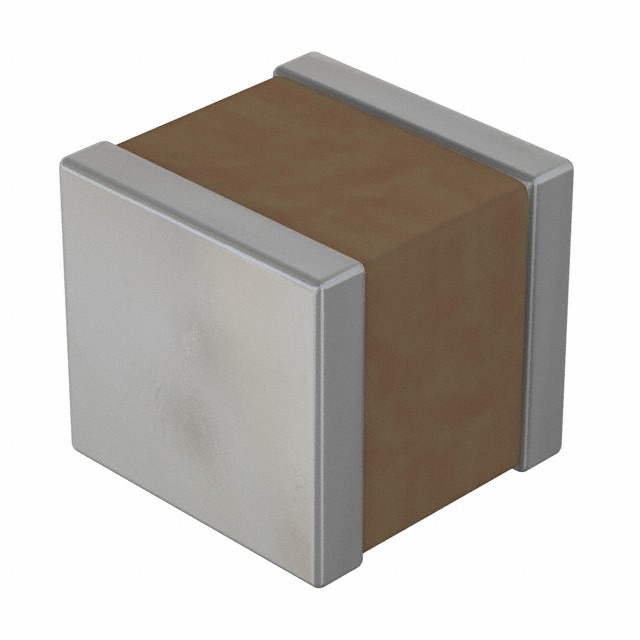

10000 pF ±10% 50V Ceramic Capacitor BX 1111 (2828 Metric)

Technical documentation and resources

No documents available
