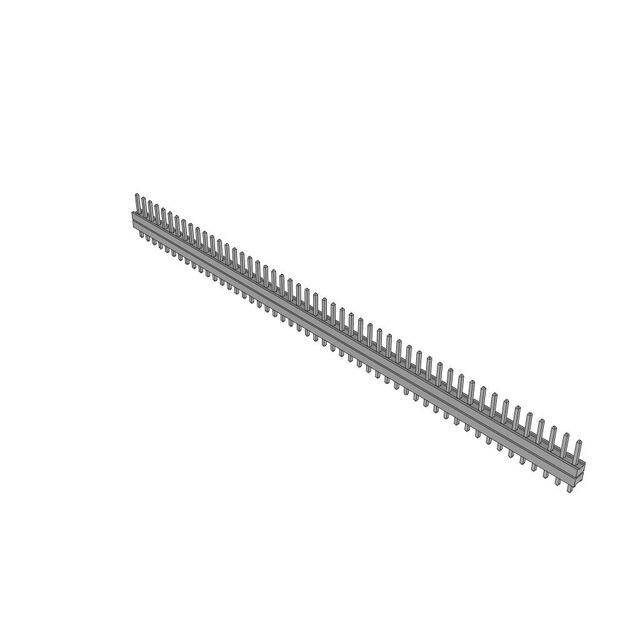

TW-50-02-T-S-130-090

Active

Samtec Inc.

CONN BRD STACK 2.00 50POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BRD STACK 2.00 50POS

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Color	Contact Finish - Post (Mating)	Termination	Pitch [x]	Pitch [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Stack Height [x]	Length - Stack Height [x]	Number of Rows	Mounting Type	Length - Tail [x]	Length - Tail [x]	Row Spacing	Row Spacing	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Stack Height [custom]	Length - Stack Height [custom]	Length - Tail	Length - Tail
Samtec Inc. TW-50-02-T-S-130-090	50	0.157 in	3.988 mm	Black	Tin	Solder	0.079 in	2 mm	9.576 mm	0.377 in	0.13 in	3.302 mm	1	Through Hole	2.286 mm	0.09 in
Samtec Inc. TW-50-02-TM-Q-140-090		0.147 in	3.734 mm	Black	Tin	Solder	0.079 in	2 mm	9.576 mm	0.377 in	0.14 in	3.556 mm		Through Hole	2.286 mm	0.09 in	2 mm	0.079 in
Samtec Inc. TW-50-02-G-S-160-105	50	0.112 in	2.845 mm	Black	Gold	Solder	0.079 in	2 mm	9.576 mm	0.377 in			1	Through Hole	2.667 mm	0.105 in			0.51 Ám	20 Áin	4.064 mm	0.16 in
Samtec Inc. TW-50-02-T-S-120-090	50	0.167 in	4.242 mm	Black	Tin	Solder	0.079 in	2 mm	9.576 mm	0.377 in	0.12 in	3.048 mm	1	Through Hole	2.286 mm	0.09 in
Samtec Inc. TW-50-02-T-S-230-075	50	0.072 in	1.829 mm	Black	Tin	Solder	0.079 in	2 mm	9.576 mm	0.377 in			1	Through Hole									1.905 mm	0.075 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.78

General part information

50 Position Header Spacer Connector 0.079" (2.00mm) Tin Through Hole
