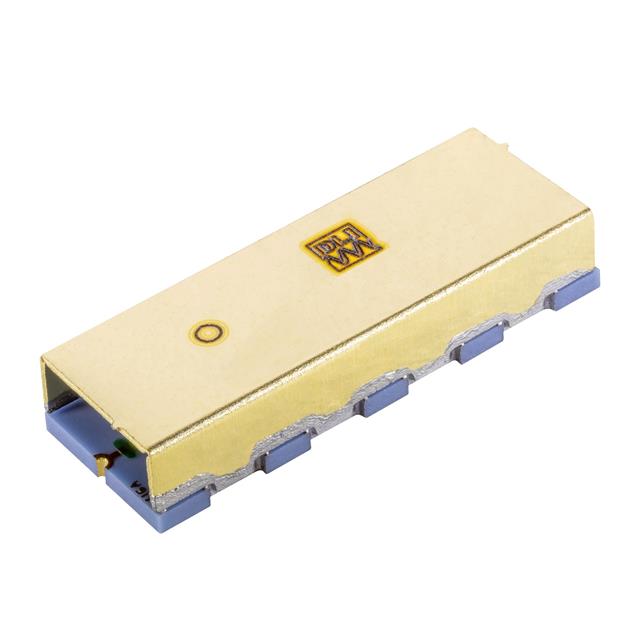

B024RF2S-T
ActiveKnowles Johanson Manufacturing
RF FILTER BAND PASS 2.4GHZ 3SMD
Deep-Dive with AI
Search across all available documentation for this part.
B024RF2S-T
ActiveKnowles Johanson Manufacturing
RF FILTER BAND PASS 2.4GHZ 3SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B024RF2S-T |
|---|---|
| Bandwidth | 1.08 GHz |
| Filter Type | Band Pass |
| Frequency | 2.4 GHz |
| Height (Max) [Max] | 0.113 in |
| Height (Max) [Max] | 2.87 mm |
| Insertion Loss | 3.5 dB |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, No Lead |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [x] | 12.7 mm |
| Size / Dimension [y] | 6.35 mm |
| Size / Dimension [y] | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 170.55 | |
| 10 | $ 139.04 | |||
| 25 | $ 133.69 | |||
| Digi-Reel® | 1 | $ 170.55 | ||
| 10 | $ 139.04 | |||
| 25 | $ 133.69 | |||
| Tape & Reel (TR) | 100 | $ 133.69 | ||
Description
General part information
B024RF Series
2.4GHz Center Frequency Band Pass RF Filter (Radio Frequency) 1.08GHz Bandwidth 3.5dB 3-SMD, No Lead
Documents
Technical documentation and resources
No documents available
