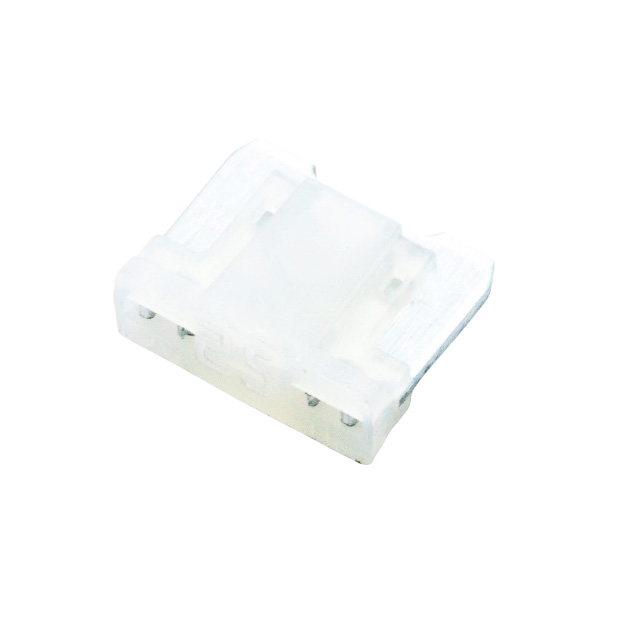

ANS-25A
ActiveOptiFuse
FUSE AUTO 25A 32VDC BLADE MINI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANS-25A
ActiveOptiFuse
FUSE AUTO 25A 32VDC BLADE MINI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANS-25A |
|---|---|
| Approval Agency | ISO, SAE |
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Clear |
| Current Rating (Amps) | 25 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Package / Case | Blade, Miniature (Low Profile) |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.433 in |
| Size / Dimension [x] | 11 mm |
| Size / Dimension [y] | 3.91 mm |
| Size / Dimension [y] | 0.154 in |
| Size / Dimension [z] | 8.75 mm |
| Size / Dimension [z] | 0.344 in |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.57 | |
| 10 | $ 0.55 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.45 | |||
| 100 | $ 0.37 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.24 | |||
Description
General part information
ANS-25 Series
25 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature (Low Profile)
