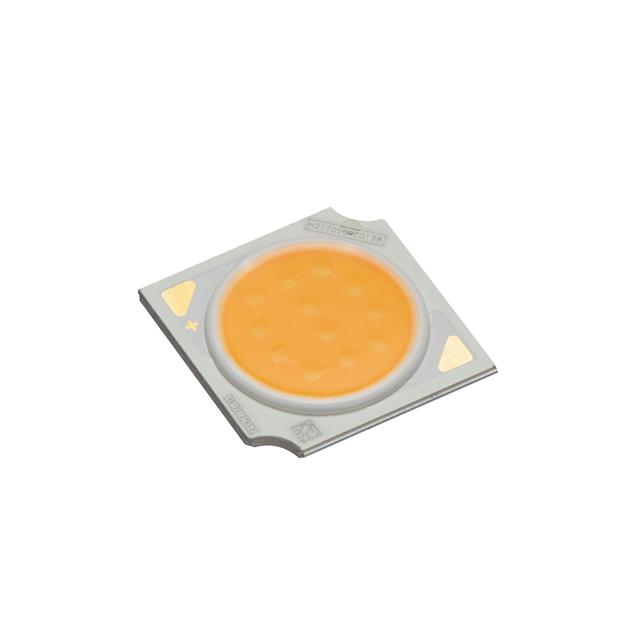

CLU02Q-1201E1-272H5X3

Active

Citizen Finedevice Co Ltd

LED COB CLU02Q WARM WHT SQ 2700K

Search across all available documentation for this part.

Active

Citizen Finedevice Co Ltd

LED COB CLU02Q WARM WHT SQ 2700K

Technical Specifications

Parameters and characteristics for this part

Specification	CLU02Q-1201E1-272H5X3

CCT (K)	2700 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	230 mA
Current - Test	90 mA
Features	With Connector
Height [z]	1.4 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	9.7 mm
Lumens/Watt @ Current - Test	133 lm/W
Luminous Flux @ Current/Temperature	440 lm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	33.8 V

Part	Features	Temperature - Test	Lumens/Watt @ Current - Test	Configuration	Color	Type	CRI (Color Rendering Index)	CCT (K)	Luminous Flux @ Current/Temperature	Current - Test	Light Emitting Surface (LES) [diameter]	Current - Max [Max]	Height [z]	Voltage - Forward (Vf) (Typ)	Lens Type
Citizen Finedevice Co Ltd CLU02Q-1202E1-303L7X4	With Connector	85 °C	175 lm/W	Square	Warm White	Chip On Board (COB)	70	3000 K	1152 lm	180 mA	9.7 mm	460 mA	1.4 mm	33.8 V	Flat
Citizen Finedevice Co Ltd CLU02Q-1204E1-352H6X3	With Connector	85 °C	137 lm/W	Square	Warm White	Chip On Board (COB)	90	3500 K	1804 lm	360 mA	9.7 mm	920 mA	1.4 mm	33.8 V	Flat
Citizen Finedevice Co Ltd CLU02Q-1201E1-503L7X4	With Connector	85 °C	179 lm/W	Square	Cool White	Chip On Board (COB)	70		591 lm	90 mA	9.7 mm	230 mA	1.4 mm	33.8 V	Flat
Citizen Finedevice Co Ltd CLU02Q-1201E1-272H6X3	With Connector	85 °C	128 lm/W	Square	Warm White	Chip On Board (COB)	90	2700 K	421 lm	90 mA	9.7 mm	230 mA	1.4 mm	33.8 V	Flat
Citizen Finedevice Co Ltd CLU02Q-1201E1-272H5X3	With Connector	85 °C	133 lm/W	Square	Warm White	Chip On Board (COB)	90	2700 K	440 lm	90 mA	9.7 mm	230 mA	1.4 mm	33.8 V	Flat
Citizen Finedevice Co Ltd CLU02Q-1202E1-272H5X3	With Connector	85 °C	132 lm/W	Square	Warm White	Chip On Board (COB)	90	2700 K	869 lm	180 mA	9.7 mm	460 mA	1.4 mm	33.8 V	Flat
Citizen Finedevice Co Ltd CLU02Q-1201E1-403L7X4	With Connector	85 °C	179 lm/W	Square	Neutral White	Chip On Board (COB)	70	4000 K	592 lm	90 mA	9.7 mm	230 mA	1.4 mm	33.8 V	Flat

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) CLU02Q White, Warm Square
