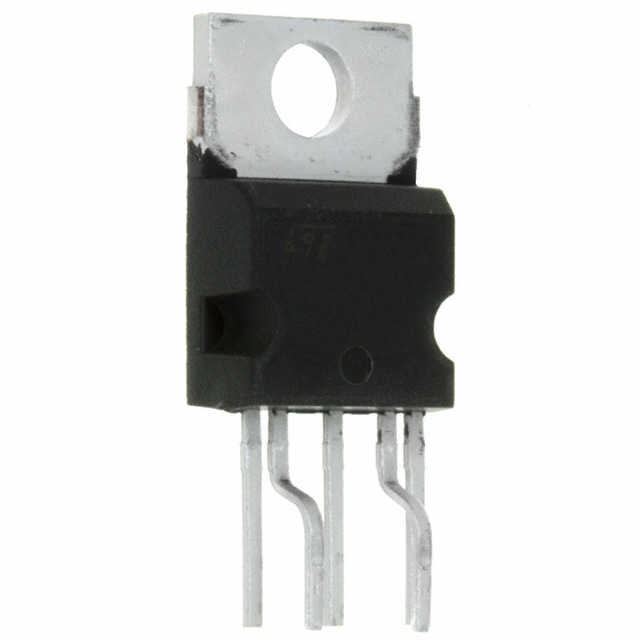

VIPER100(022Y)

Obsolete

STMicroelectronics

IC OFFLIN CONV FLBACK 5PENTAWATT

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC OFFLIN CONV FLBACK 5PENTAWATT

Technical Specifications

Parameters and characteristics for this part

Specification	VIPER100(022Y)

Control Features	Frequency Control, Soft Start, EN
Fault Protection	Over Temperature, Current Limiting
Frequency - Switching [Max]	200 kHz
Internal Switch(s)	True
Mounting Type	Surface Mount
Output Isolation	Isolated
Package / Case	Pentawatt-5 HV (Bent and Staggered Leads)
Power (Watts)	100 W
Supplier Device Package	5-PENTAWATT
Topology	Flyback
Voltage - Breakdown	620 V
Voltage - Start Up	11 V
Voltage - Supply (Vcc/Vdd) [Max]	15 V
Voltage - Supply (Vcc/Vdd) [Min]	8 V

Part	Mounting Type	Topology	Control Features	Supplier Device Package	Fault Protection	Frequency - Switching [Max]	Voltage - Breakdown	Package / Case	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Start Up	Output Isolation	Power (Watts)
STMicroelectronics VIPER100ASPTR-E	Surface Mount	Flyback	EN Frequency Control Soft Start	10-PowerSO	Current Limiting Over Temperature	200 kHz	700 V	PowerSO-10 Exposed Bottom Pad	15 V	8 V	11 V	Isolated	100 W
STMicroelectronics VIPER100A(022Y)	Surface Mount	Flyback	EN Frequency Control Soft Start	5-PENTAWATT	Current Limiting Over Temperature	200 kHz	700 V	Pentawatt-5 HV (Bent and Staggered Leads)	15 V	8 V	11 V	Isolated	100 W
STMicroelectronics VIPER100ASP-E	Surface Mount	Flyback	EN Frequency Control Soft Start	10-PowerSO	Current Limiting Over Temperature	200 kHz	700 V	PowerSO-10 Exposed Bottom Pad	15 V	8 V	11 V	Isolated	100 W
STMicroelectronics VIPER100(022Y)	Surface Mount	Flyback	EN Frequency Control Soft Start	5-PENTAWATT	Current Limiting Over Temperature	200 kHz	620 V	Pentawatt-5 HV (Bent and Staggered Leads)	15 V	8 V	11 V	Isolated	100 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Converter Offline Flyback Topology Up to 200kHz 5-PENTAWATT
