992G4

Active

Anderson Power Products, Inc.

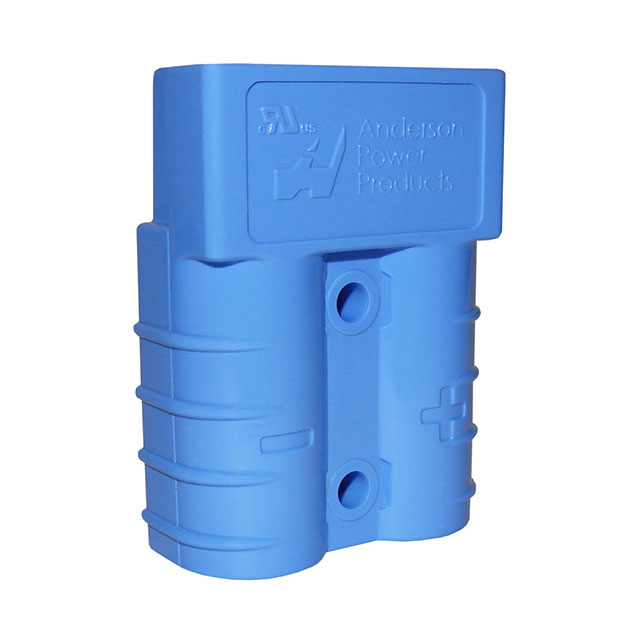

CONNECTOR: DC SUPPLY; PLUG; HERMAPHRODITE; SB® 50; FOR CABLE; BLUE

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

CONNECTOR: DC SUPPLY; PLUG; HERMAPHRODITE; SB® 50; FOR CABLE; BLUE

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Material - Insulation	Material - Insulation	Fastening Type	Note	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Rows	Connector Type	Stacking Direction	Mounting Type	Voltage Rating	Contact Termination	Current Rating (Amps)
Anderson Power Products, Inc. 992G4	Non-Gendered	Polycarbonate	PC	Spring Retention	Contacts Not Included	2	-20 C	105 ░C	Blue	1	Non-Gendered	Side to Side	Free Hanging (In-Line)	600 V	Crimp
Anderson Power Products, Inc. P992G1	Non-Gendered			Spring Retention	Contacts Not Included	2	-20 C	105 ░C	Red	1	Non-Gendered	Side to Side	Free Hanging (In-Line)	600 V	Crimp	120 A
Anderson Power Products, Inc. 992G5-BK	Non-Gendered	Polycarbonate	PC	Spring Retention	Contacts Not Included	2	-20 C	105 ░C	Yellow	1	Non-Gendered	Side to Side	Free Hanging (In-Line)	600 V	Crimp
Anderson Power Products, Inc. 992G7	Non-Gendered	Polycarbonate	PC	Spring Retention	Contacts Not Included	2	-20 C	105 ░C		1	Non-Gendered	Side to Side	Free Hanging (In-Line)	600 V	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Blade Type Power Housing Connector Non-Gendered Blue
