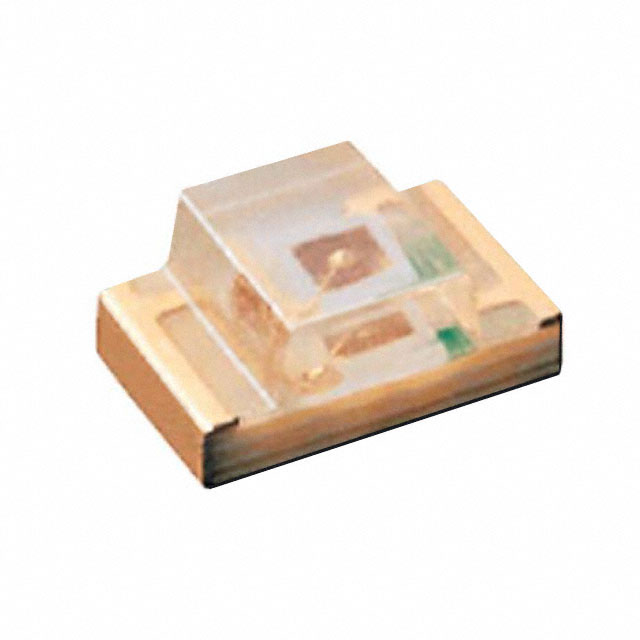

VFHV1112H-3BZ2B-TR
ActiveStanley Electric Co
LED UNI-COLOR RED 624NM 2-PIN CHIP 2125 T/R
Deep-Dive with AI
Search across all available documentation for this part.
VFHV1112H-3BZ2B-TR
ActiveStanley Electric Co
LED UNI-COLOR RED 624NM 2-PIN CHIP 2125 T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VFHV1112H-3BZ2B-TR |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 0.9 mm |
| Lens Color | White |
| Lens Size [x] | 1.3 mm |
| Lens Size [y] | 1.25 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 110 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [y] | 1.25 mm |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 1.9 V |
| Wavelength - Dominant | 615 nm |
| Wavelength - Peak | 624 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
VFHV1112 Series
Red 615nm LED Indication - Discrete 1.9V 0805 (2012 Metric)
