8500N

Active

ebm-papst Inc.

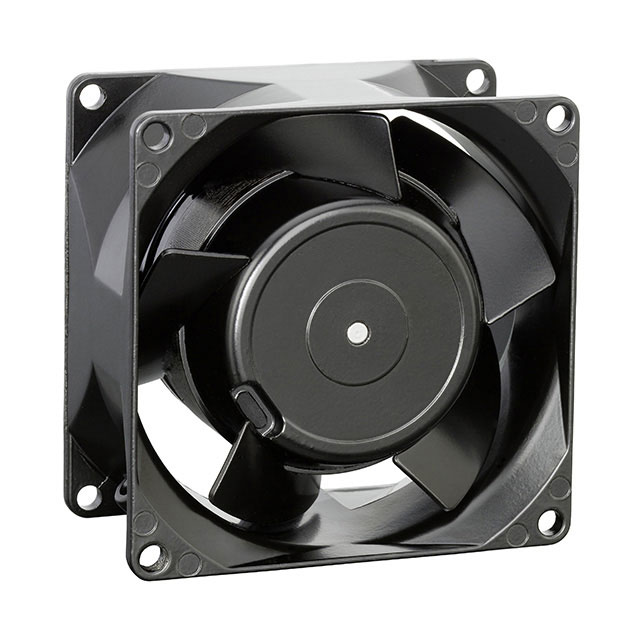

FAN AXIAL 80X38MM 115VAC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 80X38MM 115VAC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Termination	Fan Type	Bearing Type	Power (Watts)	Material - Blade	Noise	Approval Agency	RPM	Voltage - Rated	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Material - Frame	Air Flow	Air Flow	Lifetime @ Temp.
ebm-papst Inc. 8500N	-10 °C	-10 °C	75 °C	75 ░C	2 Wire Leads	Tubeaxial	Sintec	11 W	Metal	34 dB(A)	CE CSA UL VDE	3200 RPM	115 VAC	499 g	1.1 lbs	80 mm	80 mm	38 mm	Metal	35.9 CFM	1.01 m³/min	55000 Hrs
ebm-papst Inc. 8500VW					2 Wire Leads	Tubeaxial	Sintec	11 W	Metal	34 dB(A)	CSA UL VDE		115 VAC	499 g	1.1 lbs	80 mm	80 mm	38 mm	Metal	36 CFM	1.01 m³/min
ebm-papst Inc. 8500DP					2 Wire Leads	Tubeaxial	Sintec	11 W	Metal	34 dB(A)		3200 RPM	115 VAC	499 g	1.1 lbs	80 mm	80 mm	38 mm	Metal	35.9 CFM	1.01 m³/min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115VAC Square - 80mm L x 80mm H Sintec 35.9 CFM (1.01mł/min) 2 Wire Leads
