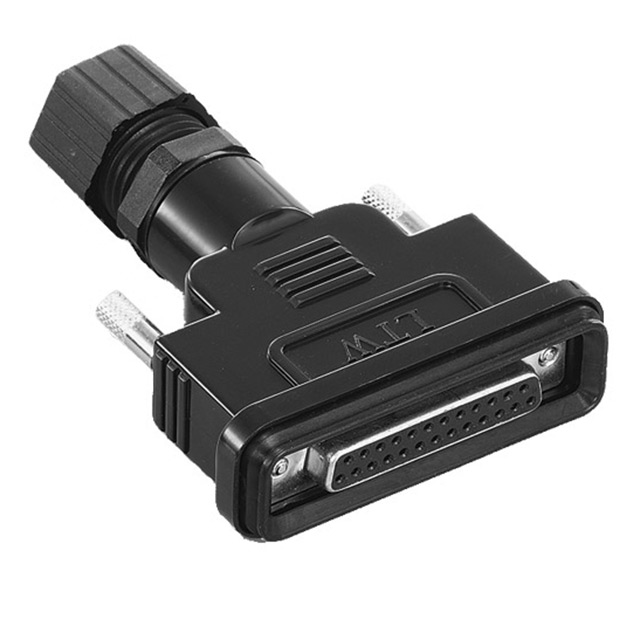

SDB-25BFFA-SL7001

Active

Amphenol LTW

CONN D-SUB RCPT 25POS SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN D-SUB RCPT 25POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SDB-25BFFA-SL7001

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Acrylonitrile Butadiene Styrene (ABS)
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3

Part	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Dielectric Material	Flange Feature	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Connector Type	Current Rating (Amps)	Mounting Type	Ingress Protection	Connector Style	Contact Material	Contact Type	Color
Amphenol LTW SDB-25BFFA-SL7001	2	B DB	3	Flash	Acrylonitrile Butadiene Styrene (ABS)	Housing/Shell (Unthreaded)	Shielded	-20 C	105 ░C	Gold	Receptacle Female Sockets	5 A	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	D-Sub	Brass	Signal	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Receptacle, Female Sockets Connector
