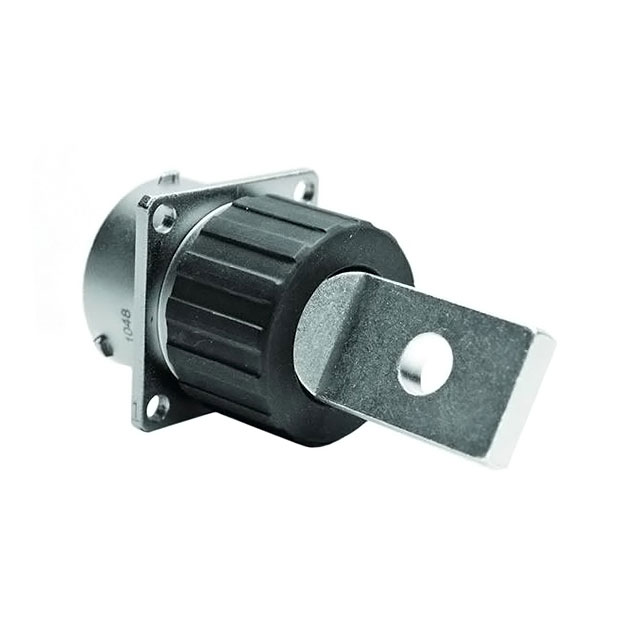

RTHP0201PN-H1
ActiveAmphenol Sine Systems Corp
CONN RCPT MALE 1P SOLDER EYELET
Deep-Dive with AI
Search across all available documentation for this part.
RTHP0201PN-H1
ActiveAmphenol Sine Systems Corp
CONN RCPT MALE 1P SOLDER EYELET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTHP0201PN-H1 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 300 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Flange |
| Number of Positions | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shielding | Shielded |
| Termination | Solder Eyelet(s) |
| Voltage Rating | 630 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 64.47 | |
| 10 | $ 59.16 | |||
| 25 | $ 56.89 | |||
| 50 | $ 54.99 | |||
| 100 | $ 51.96 | |||
Description
General part information
RTHP02 Series
1 Position Circular Connector Receptacle, Male Pins Solder Eyelet(s)
