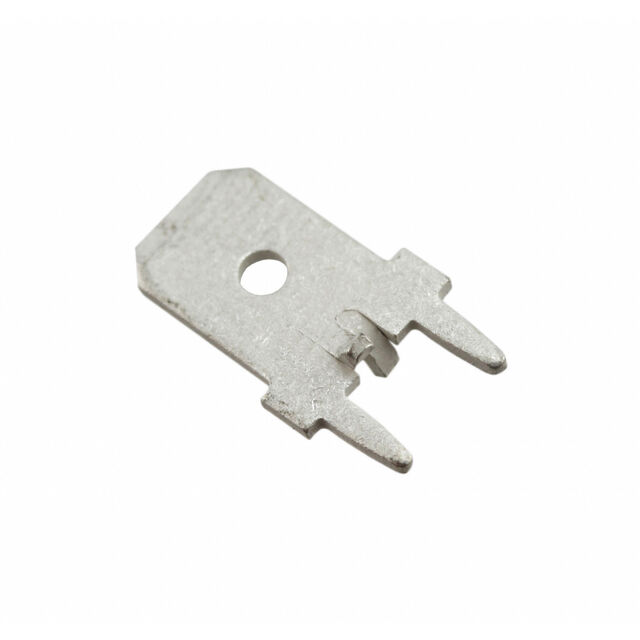

0197054201

Active

Molex

QUICK DISCONNECT TERMINAL BRASS M 7.9MM TIN BAG

Search across all available documentation for this part.

Active

Molex

QUICK DISCONNECT TERMINAL BRASS M 7.9MM TIN BAG

Technical Specifications

Parameters and characteristics for this part

Part	Tab Length	Tab Length	Contact Finish	Length - Overall [x]	Length - Overall [x]	Insulation	Terminal Type	Tab Width	Tab Width	Gender	Contact Material	Termination	Mounting Type	Tab Thickness	Tab Thickness	Length - Overall	Length - Overall
Molex 0197054003	11.94 mm	0.47 in	Tin	0.707 in	17.96 mm	Non-Insulated	Standard	6.35 mm	0.25 in	Male	Brass	Solder	Through Hole	0.032 in	0.81 mm
Molex 0197054204	8 mm	0.315 in	Tin			Non-Insulated	Standard	6.35 mm	0.25 in	Male	Brass	Solder	Through Hole	0.032 in	0.81 mm	14.02 mm	0.552 in
Molex 0197054201	8 mm	0.315 in	Tin			Non-Insulated	Standard	6.35 mm	0.25 in	Male	Brass	Solder	Through Hole	0.032 in	0.81 mm	14.02 mm	0.552 in
Molex 0197054203	8 mm	0.315 in	Tin			Non-Insulated	Standard	6.35 mm	0.25 in	Male	Brass	Solder	Through Hole	0.032 in	0.81 mm	14.02 mm	0.552 in
Molex 0197054104						Non-Insulated	Standard	4.75 mm	0.187 in	Male		Solder	Through Hole	0.032 in	0.81 mm
Molex 0197054001	11.94 mm	0.47 in	Tin	0.707 in	17.96 mm	Non-Insulated	Standard	6.35 mm	0.25 in	Male	Brass	Solder	Through Hole	0.032 in	0.81 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Male Solder Connector Non-Insulated
