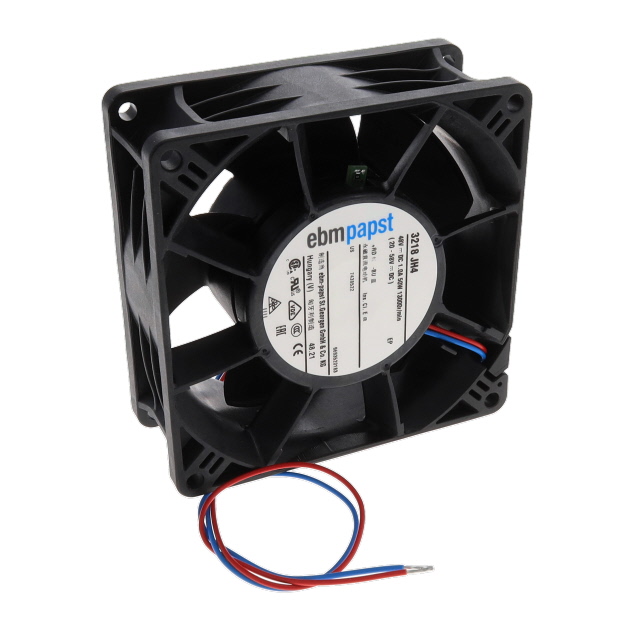

3218JH4

Active

ebm-papst Inc.

FAN AXIAL 92X38MM 48VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 92X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	3218JH4

Air Flow	164.9 CFM
Air Flow	4.62 mł/min
Approval Agency	UL, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	73 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	50 W
RPM	13000 RPM
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	58 VDC
Voltage Range [Min]	20 VDC
Width [y]	38 mm

Part	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	Power (Watts)	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Frame	Voltage - Rated [custom]	Width [y]	Air Flow	Air Flow	Material - Blade	Approval Agency	Lifetime @ Temp.	Fan Type	RPM	Noise	Features	Operating Temperature [Max]	Weight	Weight
ebm-papst Inc. 3218JH	53 VDC	36 VDC	Ball	9.5 W	2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	48 VDC	38 mm	2.41 m³/min	86 CFM	Fiberglass Reinforced Nylon Polyamide (PA)	CSA UL VDE	70000 Hrs	Tubeaxial	6800 RPM	55 dB
ebm-papst Inc. 3218JH4	58 VDC	20 VDC	Ball	50 W	2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	48 VDC	38 mm	4.62 mł/min	164.9 CFM	Fiberglass Reinforced Nylon Polyamide (PA)	CSA UL VDE	60000 Hrs	Tubeaxial	13000 RPM	73 dB(A)
ebm-papst Inc. 3218J/2H4P	58 VDC	20 VDC	Ball	50 W	4 Wire Leads	-10 °C		-10 °C	60 °C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	48 VDC	38 mm	4.62 mł/min	165 CFM	Fiberglass Reinforced Nylon Polyamide (PA)	CSA UL VDE		Tubeaxial	11000 RPM	73 dB(A)	PWM Control Speed Sensor (Tach)	60 °C	0.62 lb	281.23 g
ebm-papst Inc. 3218JN	56 VDC	36 VDC	Ball	7 W	2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	48 VDC	38 mm	2.14 mł/min	76.5 CFM	Fiberglass Reinforced Nylon Polyamide (PA)	CSA UL VDE	70000 Hrs	Tubeaxial	6000 RPM	51 dB(A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Square - 92mm L x 92mm H Ball 164.9 CFM (4.62mł/min) 2 Wire Leads
