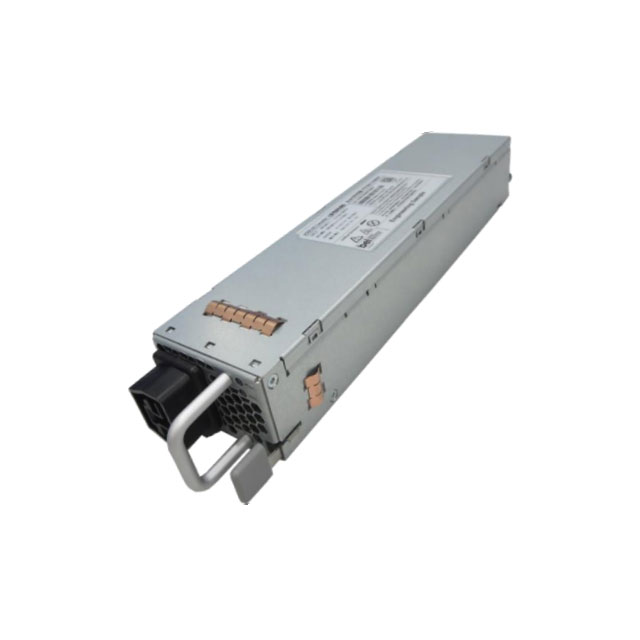

PFS1200-12-054NA

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 1200W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 1200W

Technical Specifications

Parameters and characteristics for this part

Specification	PFS1200-12-054NA

Applications	ITE (Commercial)
Approval Agency	UL, CSA, CE
Current - Output 1	100 A
Efficiency	94 %
Features	Adjustable Output, Universal Input, I2C Interface, PFC
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-5 °C
Power (Watts)	1200 W
Size / Dimension [x]	236.3 mm
Size / Dimension [x]	9.3 in
Size / Dimension [y]	2.15 "
Size / Dimension [y]	54.5 mm
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Standard Number	60950-1
Type	Front End
Voltage - Output 1	12 V

Part	Standard Number	Efficiency	Current - Output 1	Mounting Type	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Approval Agency	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Power (Watts)	Applications
EOS Power India Private Ltd PFS1200-12-054NA	60950-1	94 %	100 A	Rack Mount	Front End	236.3 mm	2.15 "	1.57 "	54.5 mm	40 mm	9.3 in	Adjustable Output I2C Interface PFC Universal Input	CE CSA UL	1	-5 °C	70 °C	12 V	1200 W	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	12	$ 400.77

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC, 180 ~ 400 VDC Input
