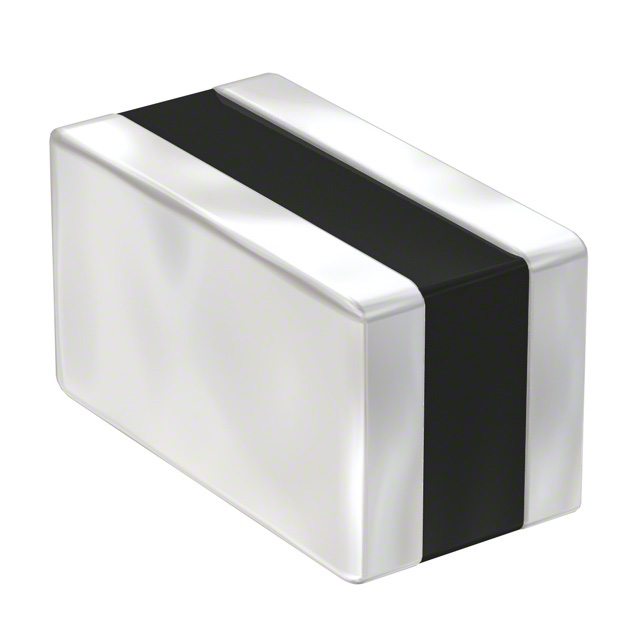

AWK107C7225MV-T
TAIYO YUDEN
CAP, MLCC, 0306, 4V, X7S, 2.2UF,20%, T&R ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AWK107C7225MV-T
TAIYO YUDEN
CAP, MLCC, 0306, 4V, X7S, 2.2UF,20%, T&R ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AWK107C7225MV-T |
|---|---|
| Applications | Bypass, Decoupling |
| Capacitance | 2.2 µF |
| Features | Low ESL (Reverse Geometry) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0816 Metric |
| Package / Case | 0306 |
| Size / Dimension [x] | 0.031 in |
| Size / Dimension [x] | 0.8 mm |
| Size / Dimension [y] | 1.6 mm |
| Size / Dimension [y] | 0.063 in |
| Temperature Coefficient | X7S |
| Thickness (Max) [Max] | 0.022 in |
| Thickness (Max) [Max] | 0.55 mm |
| Tolerance | 20 % |
| Voltage - Rated | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AWK107C Series
2.2 µF ±20% 4V Ceramic Capacitor X7S 0306 (0816 Metric)
