RPF2BB7
ActiveSQUARE D BY SCHNEIDER ELECTRIC
POWER RELAY, DPDT, 24 VAC, 30 A, ZELIO RPF SERIES, DIN RAIL, PANEL
Deep-Dive with AI
Search across all available documentation for this part.
RPF2BB7
ActiveSQUARE D BY SCHNEIDER ELECTRIC
POWER RELAY, DPDT, 24 VAC, 30 A, ZELIO RPF SERIES, DIN RAIL, PANEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RPF2BB7 |
|---|---|
| Approval Agency | CSA, UL, CE, GOST |
| Coil Current | 141.2 mA |
| Coil Resistance | 170 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 25 A |
| Load - Max Switching | 700 W, 6250 VA |
| Mounting Type | Chassis Mount |
| Must Release Voltage | 3.6 VAC |
| Operate Time | 25 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 25 ms |
| Switching Voltage | 250 VAC, 28 VDC |
| Termination Style | Quick Connect - Multiple Sizes |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RPF2B Series

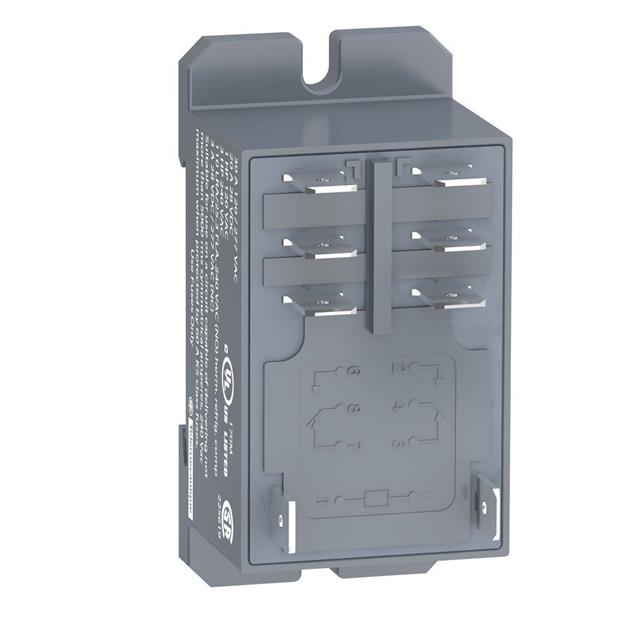

The RPF2BB7 is a plug-in Power Relay with silver tin oxide contacts and DPDT contact configuration. Due to its compact size, Zelio can be used to multiply the functions in electrical enclosures. Simplicity, no adjustment required for standard applications. Ease of integration in an existing device.
