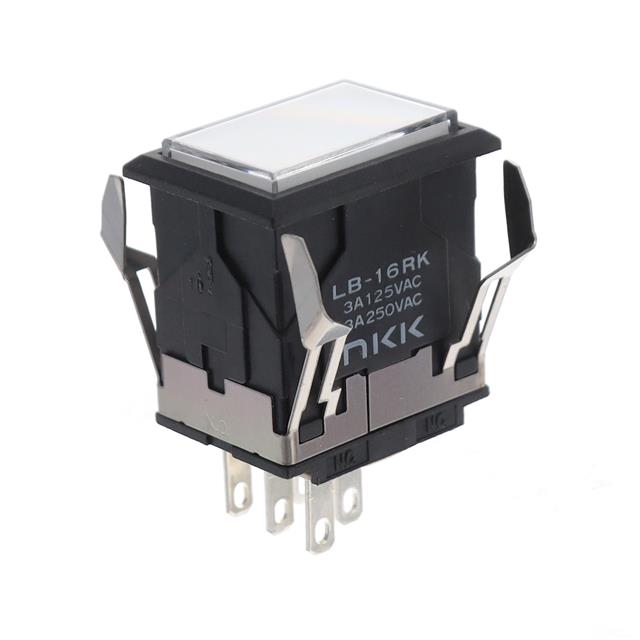

LB16RKW01-5F05-JB
ActiveNKK Switches
STANDARD SIZE PANEL SEAL PUSHBUTTON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LB16RKW01-5F05-JB
ActiveNKK Switches
STANDARD SIZE PANEL SEAL PUSHBUTTON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LB16RKW01-5F05-JB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Rectangular, Button |
| Circuit | SPDT |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 3 A |
| Electrical Life | 100000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 5 VDC |
| Mechanical Life | 200000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 22.4 mm |
| Panel Cutout Dimensions [y] | 16.2 mm |
| Switch Function | On-On |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
LB16RKW01 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Actuator Marking | Switch Function | Termination Style | Termination Style | Termination Style | Mechanical Life | Voltage Rating - AC | Electrical Life | Actuator Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Color - Actuator/Cap | Voltage Rating - DC | Illumination Voltage (Nominal) | Mounting Type | Illumination Type, Color | Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 50 °C | -25 °C | SPDT | No Marking | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | 200000 Cycles | 125 V | 100000 Cycles | Rectangular Button | 22.4 mm | 16.2 mm | Clear (Red Filter/Diffuser) | 30 V | 12 VDC | Panel Mount Snap-In | LED Red | Illuminated Standard | 3 A |
NKK Switches | 50 °C | -25 °C | SPDT | No Marking | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | 200000 Cycles | 125 V | 100000 Cycles | Rectangular Button | 22.4 mm | 16.2 mm | Clear | 30 V | 2.1 VDC | Panel Mount Snap-In | Green LED | Illuminated Standard | 3 A |
NKK Switches | 50 °C | -25 °C | SPDT | No Marking | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | 200000 Cycles | 125 V | 100000 Cycles | Rectangular Button | 22.4 mm | 16.2 mm | Clear | 30 V | 3.3 VDC | Panel Mount Snap-In | LED White | Illuminated Standard | 3 A |
NKK Switches | 50 °C | -25 °C | SPDT | No Marking | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | 200000 Cycles | 125 V | 100000 Cycles | Rectangular Button | 22.4 mm | 16.2 mm | Clear | 30 V | Panel Mount Snap-In | Neon White | Illuminated Standard | 3 A | |
NKK Switches | 50 °C | -25 °C | SPDT | No Marking | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | 200000 Cycles | 125 V | 100000 Cycles | Rectangular Button | 22.4 mm | 16.2 mm | Clear | 30 V | 5 VDC | Panel Mount Snap-In | Green LED | Illuminated Standard | 3 A |
NKK Switches | 50 °C | -25 °C | SPDT | No Marking | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | 200000 Cycles | 125 V | 100000 Cycles | Rectangular Button | 22.4 mm | 16.2 mm | Clear | 30 V | 5 VDC | Panel Mount Snap-In | LED Red | Illuminated Standard | 3 A |
NKK Switches | 50 °C | -25 °C | SPDT | No Marking | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | 200000 Cycles | 125 V | 100000 Cycles | Rectangular Button | 22.4 mm | 16.2 mm | Clear | 30 V | 3.3 VDC | Panel Mount Snap-In | Green LED | Illuminated Standard | 3 A |
NKK Switches | 50 °C | -25 °C | SPDT | No Marking | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | 200000 Cycles | 125 V | 100000 Cycles | Rectangular Button | 22.4 mm | 16.2 mm | Clear (Red Filter/Diffuser) | 30 V | 24 V | Panel Mount Snap-In | LED Red | Illuminated Standard | 3 A |
NKK Switches | 50 °C | -25 °C | SPDT | No Marking | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | 200000 Cycles | 125 V | 100000 Cycles | Rectangular Button | 22.4 mm | 16.2 mm | Clear | 30 V | 24 V | Panel Mount Snap-In | Green LED | Illuminated Standard | 3 A |
NKK Switches | 50 °C | -25 °C | SPDT | No Marking | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | 200000 Cycles | 125 V | 100000 Cycles | Rectangular Button | 22.4 mm | 16.2 mm | Clear (Red Filter/Diffuser) | 30 V | 24 V | Panel Mount Snap-In | Green LED | Illuminated Standard | 3 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LB16RKW01 Series
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
