BSH10-E
ActivePanduit Corp

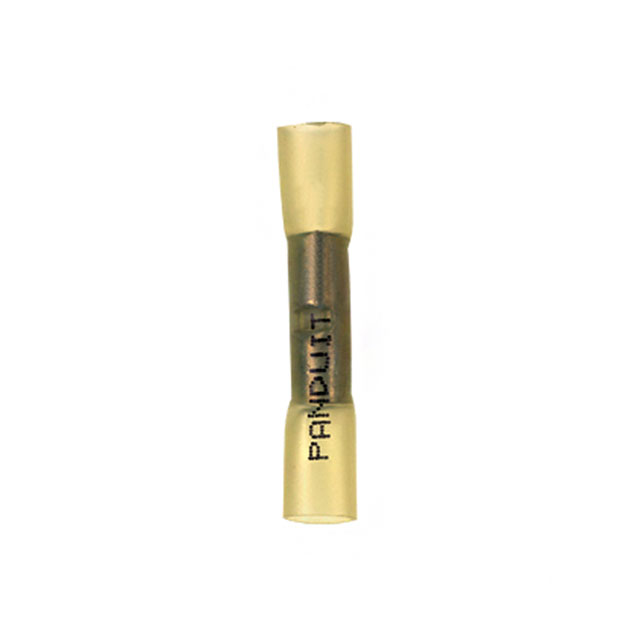

BUTT SPLICE TERMINAL 10-12AWG COPPER YELLOW 41.7MM TIN BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BSH10-E
ActivePanduit Corp
BUTT SPLICE TERMINAL 10-12AWG COPPER YELLOW 41.7MM TIN BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BSH10-E |
|---|---|
| Color | Yellow |
| Features | Brazed Seam |
| Insulation | Fully Insulated Heat Shrink |
| Number of Wire Entries | 2 |
| Terminal Type | Butt Splice, Inline, Individual Openings |
| Termination | Crimp |
| Wire Gauge [Max] | 12 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.90 | |
| 20 | $ 2.82 | |||
| 40 | $ 2.74 | |||
| 60 | $ 2.66 | |||
| 100 | $ 2.58 | |||
| 500 | $ 2.51 | |||
| 1000 | $ 2.43 | |||
Description
General part information
BSH10 Series
Terminal Butt Splice, Inline, Individual Openings Connector Crimp 10-12 AWG Yellow
