A16ZA-5101R

Active

Omron Electronics Inc-EMC Div

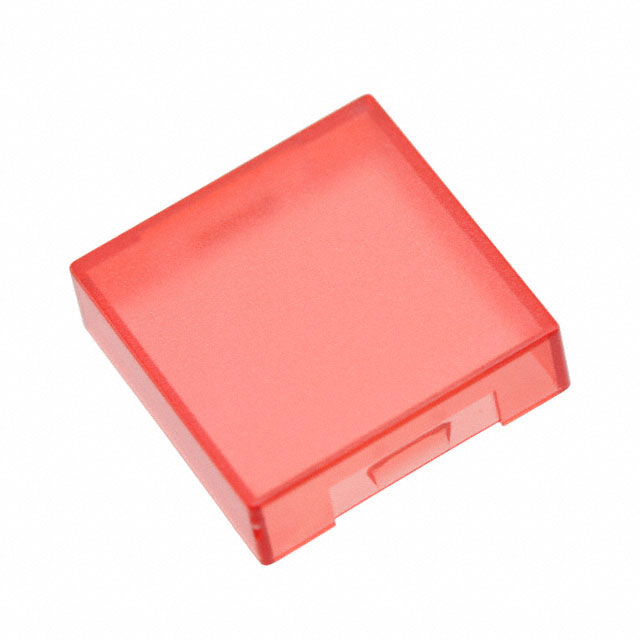

CAP PUSHBUTTON SQUARE RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A16ZA-5101R

Active

Omron Electronics Inc-EMC Div

CAP PUSHBUTTON SQUARE RED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A16ZA-5101R

Color	Red
For Use With/Related Products	A16 Series
Illumination	Illumination Optional
Mounting Type	Snap Fit
Shape	Square
Size [x]	15.1 mm
Size [y]	15.1 mm
Size [z]	3.5 mm
Switch Type	Pushbutton

A16 Series

...

Part	Illumination Voltage (Nominal)	Electrical Life	Circuit	Color - Actuator/Cap	Ingress Protection	Termination Style	Termination Style	Termination Style	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Actuator Type	Voltage Rating - AC	Switch Function	Mechanical Life	Mounting Type	Panel Cutout Dimensions [diameter]	Actuator Marking	Type	Illumination Type, Color	Current Rating (Amps)	For Use With/Related Products	Accessory Type	Requires	Illumination	Contact Rating @ Voltage	Switch Type	Color	Shape	Size [y]	Size [x]	Size [z]	Size [diameter]
Omron Electronics Inc-EMC Div A16L-JWM-24D-1	24 V	100000 Cycles	SPDT	White	IP40	0.11 in	Quick Connect Solder	2.8 mm	55 °C	-10 °C	Rectangular Button	125 V	On-Mom	2000000 Cycles	Panel Mount Front	16 mm	No Marking	Illuminated Standard	LED White	5 A
Omron Electronics Inc-EMC Div A16-12DSW																					A16 Series	LED
Omron Electronics Inc-EMC Div A16-TWM											Pushbutton Round					16 mm		Momentary					Contact Block(s)	Non-Illuminated
Omron Electronics Inc-EMC Div A16L-JPYM-24D-1	24 V	100000 Cycles	SPDT	Yellow	IP40	0.11 in	Quick Connect Solder	2.8 mm	55 °C	-10 °C	Rectangular Button	125 V	On-Mom	2000000 Cycles	Panel Mount Front	16 mm	No Marking	Illuminated Standard	LED Yellow	5 A
Omron Electronics Inc-EMC Div A16L-R-24D-2			DPDT			0.11 in	Quick Connect Solder	2.8 mm															Switch Body		5 A 125 VAC
Omron Electronics Inc-EMC Div A16L-JRA-12D-1	12 VDC	100000 Cycles	SPDT	Red	IP40	0.11 in	Quick Connect Solder	2.8 mm	55 °C	-10 °C	Rectangular Button	125 V	On-On	200000 Cycles	Panel Mount Front	16 mm	No Marking	Illuminated Standard	LED Red	5 A
Omron Electronics Inc-EMC Div A16ZA-5101R															Snap Fit						A16 Series			Illumination Optional		Pushbutton	Red	Square	15.1 mm	15.1 mm	3.5 mm
Omron Electronics Inc-EMC Div A16L-TWM-12D-1	12 VDC	100000 Cycles	SPDT	White	IP40	0.11 in	Quick Connect Solder	2.8 mm	55 °C	-10 °C	Button Round	125 V	On-Mom	2000000 Cycles	Panel Mount Front	16 mm	No Marking	Illuminated Standard	LED White	5 A
Omron Electronics Inc-EMC Div A16ZA-5011B															Snap Fit						A16 Series			Non-Illuminated		Pushbutton	Black	Square	15.1 mm	15.1 mm	3.5 mm
Omron Electronics Inc-EMC Div A16ZT-5001W															Snap Fit						A16 Series			Illumination Optional		Pushbutton	White	Round			3.5 mm	15.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.37

Description

General part information

A16 Series

Square Pushbutton Switch Cap Red Snap Fit
