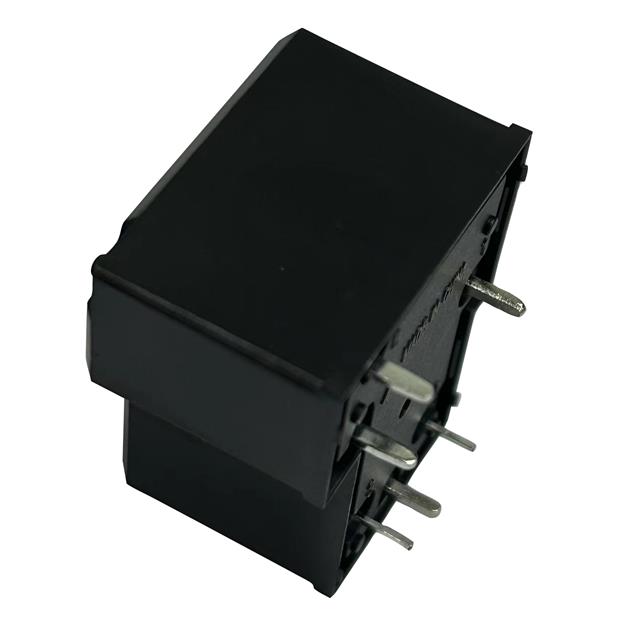

HAT901CSDC24

Active

Hasco Relays

RELAY SPDT 30A 24V

Search across all available documentation for this part.

Active

Hasco Relays

RELAY SPDT 30A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Coil Type	Release Time	Switching Voltage [Max]	Contact Form	Must Operate Voltage	Coil Voltage	Mounting Type	Coil Current	Operate Time	Contact Rating (Current)	Coil Insulation
Hasco Relays HAT901ASDC24	PC Pin	Silver Alloy	85 °C	-40 °C	2.4 VDC	Non Latching	10 ms	277 VAC	SPST-NO (1 Form A)	18 VDC	24 VDC	Through Hole	36.4 mA	15 ms	30 A	Class B
Hasco Relays HAT901CSDC24	PC Pin	Silver Alloy	85 °C	-40 °C	2.4 VDC	Non Latching	10 ms	277 VAC	SPDT (1 Form C)	18 VDC	24 VDC	Through Hole	36.4 mA	15 ms	40 A	Class B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	20	$ 1.89

General part information

Relay SPDT (1 Form C) 24VDC Coil Through Hole
