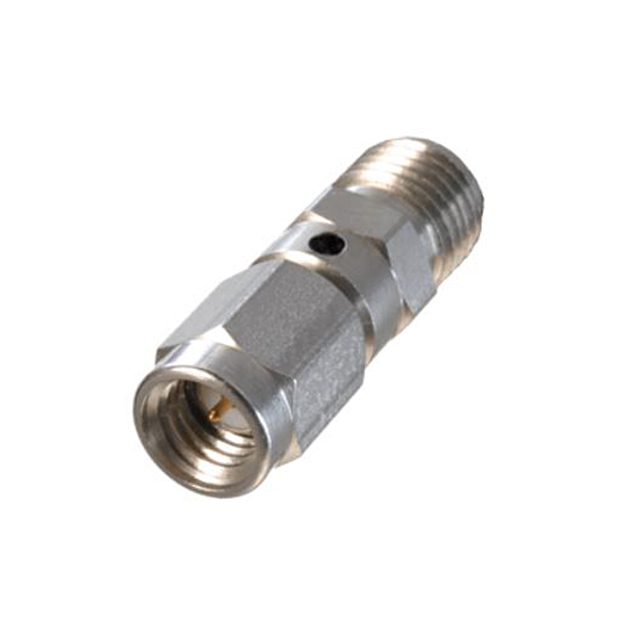

ADT-2697-SF-SSM-02
ActiveCinch Connectivity Solutions Midwest Microwave
CONN ADAPT SSMA PLUG TO SMA JACK
Deep-Dive with AI
Search across all available documentation for this part.
ADT-2697-SF-SSM-02
ActiveCinch Connectivity Solutions Midwest Microwave
CONN ADAPT SSMA PLUG TO SMA JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ADT-2697-SF-SSM-02 |
|---|---|
| Adapter Series | SMA to SSMA |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SSMA Plug, Male Pin |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 25 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 115.21 | |
| 10 | $ 89.74 | |||
| 25 | $ 81.69 | |||
| 50 | $ 76.26 | |||
| 100 | $ 71.35 | |||
Description
General part information
ADT-2697 Series
Adapter Coaxial Connector SSMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
