R24P209S/P/X2/R6.4

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC 6.4KV UNREG 24VIN 9VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

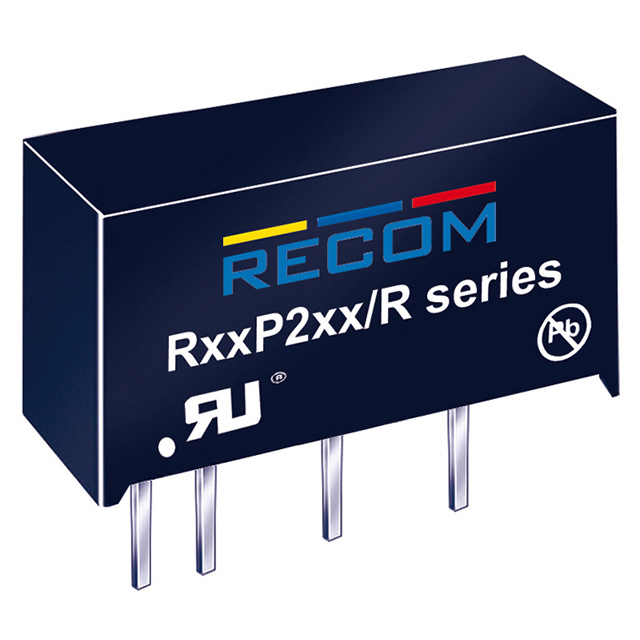

R24P209S/P/X2/R6.4

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC 6.4KV UNREG 24VIN 9VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R24P209S/P/X2/R6.4

Applications	ITE (Commercial), Medical
Current - Output (Max) [Max]	222 mA
Efficiency	87 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 4 Leads
Power (Watts)	2 W
Type	Isolated Module
Voltage - Input (Max) [Max]	26.4 V
Voltage - Input (Min) [Min]	21.6 V
Voltage - Isolation	6.4 kV
Voltage - Output 1	9 V

RxxP21503D Series

Isolated DC/DC Converters - Through Hole 2W 24VIN +15/-9V THT SHORT CIRCUIT PROTEC

...

Part	Type	Power (Watts)	Voltage - Output 1	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Input (Max) [Max]	Mounting Type	Features	Current - Output (Max) [Max]	Package / Case	Voltage - Input (Min) [Min]	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Current - Output (Max)	Voltage - Output 2
RECOM Power R05P209S/P/R6.4	Isolated Module	2 W	9 V	6.4 kV	85 °C	-40 °C	ITE (Commercial) Medical	5.5 V	Through Hole	SCP	222 mA	7-SIP Module 4 Leads	4.5 V	1	0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm	87 %
RECOM Power R12P215D/R6.4	Isolated Module	2 W	15 V	6.4 kV	85 °C	-40 °C	ITE (Commercial) Medical	13.2 V	Through Hole			7-SIP Module 5 Leads	10.8 V	2	0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm	88 %	66 mA	-15 V
RECOM Power R24P209S/P/X2/R6.4	Isolated Module	2 W	9 V	6.4 kV	85 °C	-40 °C	ITE (Commercial) Medical	26.4 V	Through Hole	SCP	222 mA	7-SIP Module 4 Leads	21.6 V	1							87 %
RECOM Power R05P212S/P/X2/R8	Isolated Module	2 W	12 V	8 kV	85 °C	-40 °C	ITE (Commercial) Medical	5.5 V	Through Hole	SCP	167 mA	7-SIP Module 4 Leads	4.5 V	1							87 %
RECOM Power R05P205D	Isolated Module	2 W	5 V	6.4 kV	85 °C	-40 °C	ITE (Commercial) Medical	5.5 V	Through Hole			7-SIP Module 5 Leads	4.5 V	2	0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm	75 %		-5 V
RECOM Power R12P205D/P/R6.4	Isolated Module	2 W	5 V	6.4 kV	85 °C	-40 °C	ITE (Commercial) Medical	13.2 V	Through Hole	SCP		7-SIP Module 5 Leads	10.8 V	2	0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm	85 %		-5 V
RECOM Power R24P209S/P	Isolated Module	2 W	9 V	6.4 kV	85 °C	-40 °C	ITE (Commercial) Medical	26.4 V	Through Hole	SCP	222 mA	7-SIP Module 4 Leads	21.6 V	1	0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm	75 %
RECOM Power R05P205S/X2/R6.4	Isolated Module	2 W	5 V	6.4 kV	85 °C	-40 °C	ITE (Commercial) Medical	5.5 V	Through Hole		400 mA	7-SIP Module 4 Leads	4.5 V	1	0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm	84 %
RECOM Power R05P215S/P/R8	Isolated Module	2 W	15 V	8 kV	85 °C	-40 °C	ITE (Commercial) Medical	5.5 V	Through Hole	SCP	132 mA	7-SIP Module 4 Leads	4.5 V	1	0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm	88 %
RECOM Power R05P23.3S/P/X2/R8	Isolated Module	2 W	3.3 V	8 kV	85 °C	-40 °C	ITE (Commercial) Medical	5.5 V	Through Hole	SCP	600 mA	7-SIP Module 4 Leads	4.5 V	1							78 %
