09140363101

Active

HARTING Technology Group

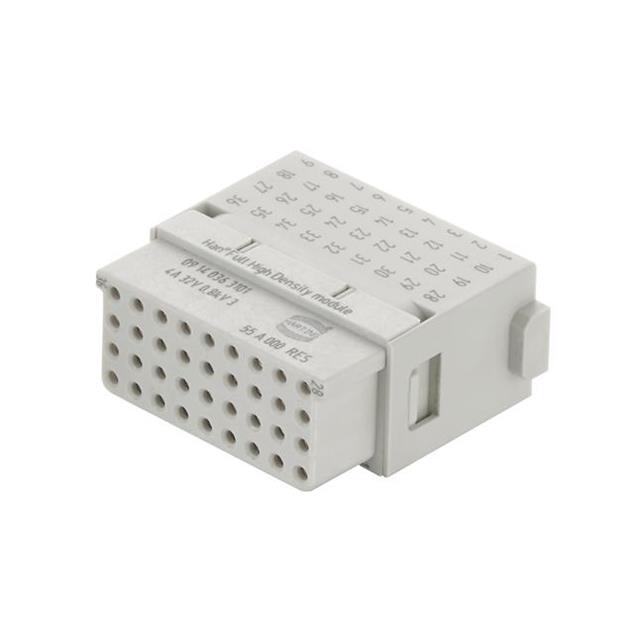

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, MODULE, 36 CONTACTS, RECEPTACLE

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, MODULE, 36 CONTACTS, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	09140363101

Color	Gray
Connector Type	Module without Contacts
Current Rating (Amps)	4 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	36
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	32 V

Part	Connector Type	Termination Style	Voltage Rating	Gender	Current Rating (Amps)	Material Flammability Rating	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Color
HARTING Technology Group 09140363101	Module without Contacts	Crimp	32 V	Female	4 A	UL94 V-0	Polycarbonate (PC)	125 °C	-40 °C	36	Gray
HARTING Technology Group 09140363001	Module without Contacts	Crimp	32 V	Male	4 A	UL94 V-0	Polycarbonate (PC)	125 °C	-40 °C	36	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Module without Contacts Gray 36 Position Crimp
