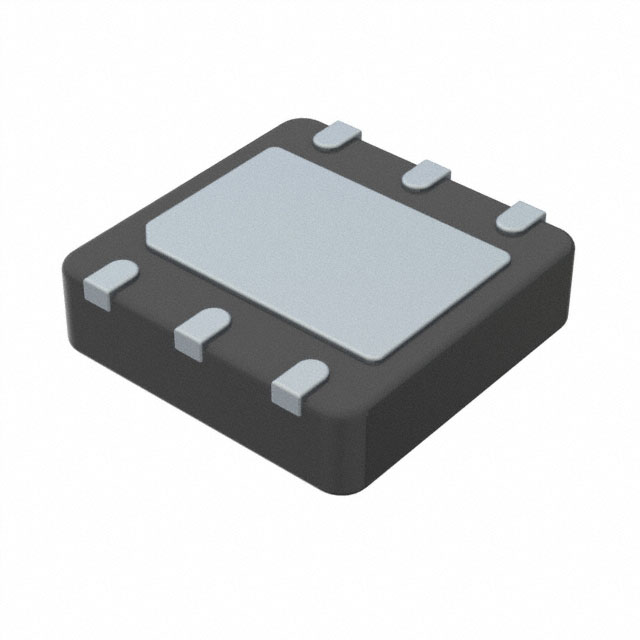

74AUP1G04DTR

Obsolete

STMicroelectronics

IC INVERTER 1CH 1-INP 6DFN

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC INVERTER 1CH 1-INP 6DFN

Technical Specifications

Parameters and characteristics for this part

Specification	74AUP1G04DTR

Current - Output High, Low	10 mA, 10 mA
Current - Quiescent (Max) [Max]	100 nA
Input Logic Level - High [Max]	2 V
Input Logic Level - High [Min]	1.6 V
Input Logic Level - Low [Max]	0.8 V
Input Logic Level - Low [Min]	0.7 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	3.8 ns
Mounting Type	Surface Mount
Number of Circuits	1
Number of Inputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-UFDFN
Supplier Device Package	6-DFN (1.2x1.0)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.2 V

Part	Max Propagation Delay @ V, Max CL	Package / Case	Number of Circuits	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Current - Output High, Low	Supplier Device Package	Mounting Type	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Logic Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Inputs	Current - Quiescent (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
STMicroelectronics 74AUP1G04GTR	3.8 ns	SOT-665	1	2 V	1.6 V	10 mA 10 mA	SOT-665	Surface Mount	0.8 V	0.7 V	Inverter	1.2 V	3.6 V	1	100 nA	85 °C	-40 °C
STMicroelectronics 74AUP1G04DTR	3.8 ns	6-UFDFN	1	2 V	1.6 V	10 mA 10 mA	6-DFN (1.2x1.0)	Surface Mount	0.8 V	0.7 V	Inverter	1.2 V	3.6 V	1	100 nA	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Inverter IC 1 Channel 6-DFN (1.2x1.0)
