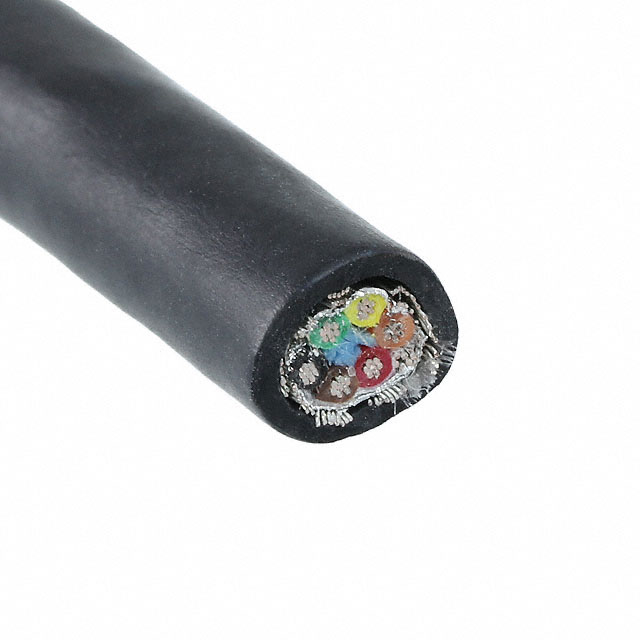

25016 BK005 - 25116 BK005

25016 BK005

Active
ALPHA WIRE

XTRA-GUARD 2 /100 FT /EACH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsConductor Color CodingXtra-Guard Catalog+1
25016 BK005 - 25116 BK005

25016 BK005

Active
ALPHA WIRE

XTRA-GUARD 2 /100 FT /EACH

Deep-Dive with AI

DocumentsConductor Color CodingXtra-Guard Catalog+1

Technical Specifications

Parameters and characteristics for this part

Specification25016 BK005
Cable TypeMulti-Conductor
Conductor InsulationPoly-Vinyl Chloride (PVC)
Conductor MaterialCopper, Tinned
Conductor Strand [custom]32 AWG
Conductor Strand [custom]7
FeaturesRip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]5.11 mm
Jacket (Insulation) Diameter [diameter]0.201 in
Jacket (Insulation) MaterialPolyurethane (PU)
Jacket ColorBlack
Length [x]30.5 m
Length [x]100 ft
Number of Conductors6
Operating Temperature [Max]90 °C
Operating Temperature [Min]-30 ░C
RatingsUL Style 20668, ISO 10993
Voltage300 V
Wire Gauge24 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeySpool 100$ 4.55
200$ 4.32
300$ 4.20
500$ 4.04
700$ 3.94
1000$ 3.85
NewarkSpool of 100 1$ 567.48
5$ 482.65
10$ 432.92
25$ 403.67
50$ 397.82

Description

General part information

25016 Series

6 Conductor Multi-Conductor Cable Black 24 AWG 100.0' (30.5m)
