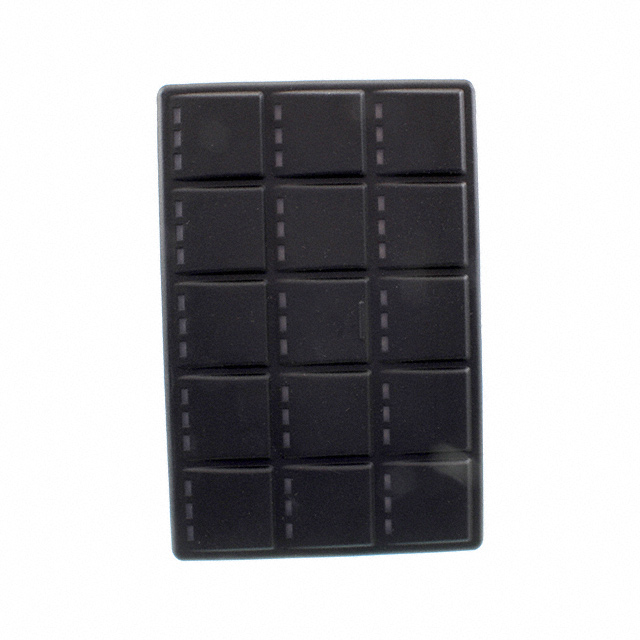

3K015-3RN3AG

Active

Grayhill Inc.

SWITCH KEYPAD 15KEY ILLUM

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH KEYPAD 15KEY ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	3K015-3RN3AG

Approval Agency	CE
Illumination	Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Key Color	Black
Key Type	Rubber Overlay
Legend	Blank Buttons
Legend Type	Fixed
Matrix (Columns x Rows) [custom]	3
Matrix (Columns x Rows) [custom]	5
Mounting Type	Panel Mount, Front
Number of Keys	15
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Operational Life	1000000 Cycles
Output Type	CAN Bus (CANopen)
Panel Cutout Dimensions [diameter]	57.15 mm
Switch Type	Snap Dome
Termination Style	Connector

Part	Termination Style	Approval Agency	Ingress Protection	Illumination	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Legend Type	Number of Keys	Legend	Mounting Type	Panel Cutout Dimensions [diameter]	Output Type	Key Color	Operating Temperature [Max]	Operating Temperature [Min]	Switch Type	Operational Life	Key Type
Grayhill Inc. 3K015-3RN3AG	Connector	CE	IP67 - Dust Tight Waterproof	Illuminated	3	5	Fixed	15	Blank Buttons	Panel Mount Front	57.15 mm	CAN Bus (CANopen)	Black	85 °C	-40 °C	Snap Dome	1000000 Cycles	Rubber Overlay

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 269.98

General part information

Keypad Switch 15 Rubber Overlay Keys Snap Dome Contacts CAN Bus (CANopen) Output Illuminated
