WR-80P-HF-HD-A1E-R1200
ActiveJAE Electronics

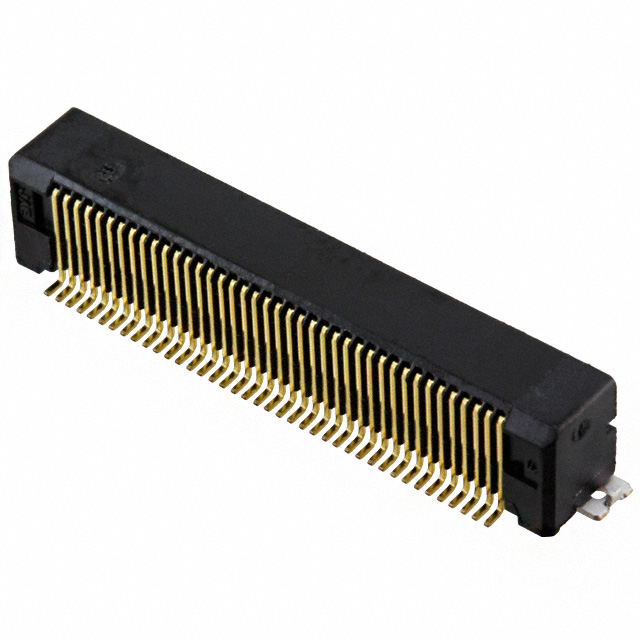

CONN PLUG 80POS R/A SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WR-80P-HF-HD-A1E-R1200
ActiveJAE Electronics
CONN PLUG 80POS R/A SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WR-80P-HF-HD-A1E-R1200 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board | 4.7 mm |
| Height Above Board | 0.185 in |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.21 | |
| Digi-Reel® | 1 | $ 8.21 | ||
| Tape & Reel (TR) | 1200 | $ 5.82 | ||
Description
General part information
WR-80P-H Series
80 Position Connector Plug, Outer Shroud Contacts Surface Mount, Right Angle Gold
