0301-1-15-80-47-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	0301-1-15-80-47-27-10-0

Accepts Pin Diameter [Max]	0.037 "
Accepts Pin Diameter [Max]	0.94 mm
Accepts Pin Diameter [Min]	0.64 mm
Accepts Pin Diameter [Min]	0.025 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.078 in
Flange Diameter [diameter]	1.98 mm
Length - Overall	13.64 mm
Length - Overall	0.537 in
Mounting Hole Diameter [diameter]	0.042 in
Mounting Hole Diameter [diameter]	1.07 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Tail Diameter	1.02 mm
Tail Diameter [diameter]	0.04 "
Tail Type	Standard Tail
Termination	Solder

Part	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Length - Overall	Length - Overall	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Tail Diameter [diameter]	Tail Diameter
Mill-Max Manufacturing Corp. 0301-1-15-01-47-01-10-0	Standard Tail	0.078 in	1.98 mm	Tin-Lead	13.64 mm	0.537 in	-55 °C	125 °C	0.051 in	1.3 mm	0.64 mm	0.025 in	0.042 in	1.07 mm	Solder	0.037 "	0.64 mm	0.94 mm	0.025 "	Beryllium Copper	200 Áin	5.08 Ám	0.04 "	1.02 mm
Mill-Max Manufacturing Corp. 0301-1-15-15-47-14-10-0	Standard Tail	0.078 in	1.98 mm	Gold	13.64 mm	0.537 in	-55 °C	125 °C	0.051 in	1.3 mm	0.64 mm	0.025 in	0.042 in	1.07 mm	Solder	0.037 "	0.64 mm	0.94 mm	0.025 "	Beryllium Copper	10 Áin	0.25 Ám	0.04 "	1.02 mm
Mill-Max Manufacturing Corp. 0301-1-15-80-47-27-10-0	Standard Tail	0.078 in	1.98 mm	Gold	13.64 mm	0.537 in	-55 °C	125 °C	0.051 in	1.3 mm	0.64 mm	0.025 in	0.042 in	1.07 mm	Solder	0.037 "	0.64 mm	0.94 mm	0.025 "	Beryllium Copper	30 Áin	0.76 Ám	0.04 "	1.02 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

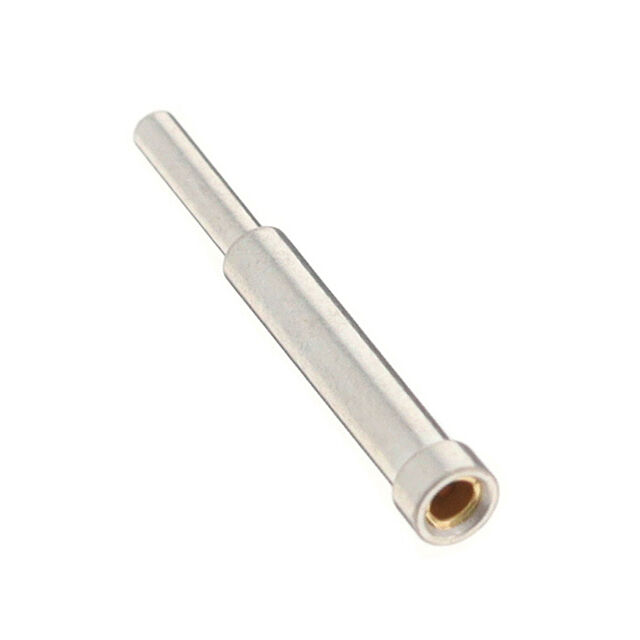

Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) Standard Tail Solder
