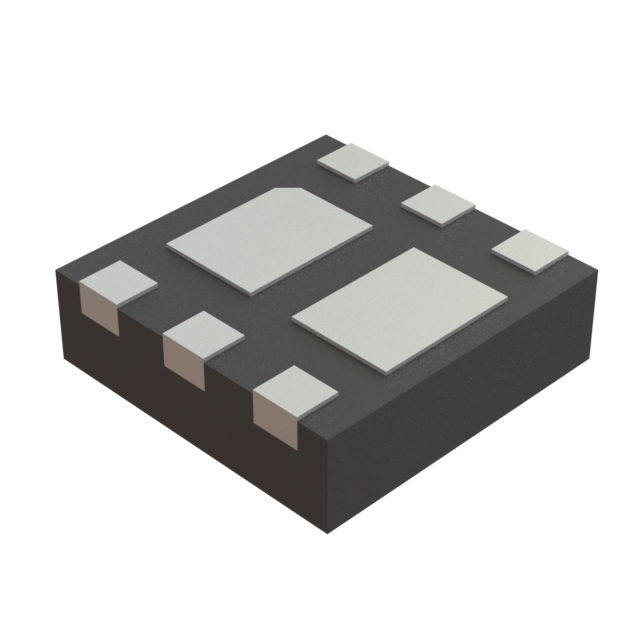

UT6KB5TCR
ActiveRohm Semiconductor
DUAL MOSFET, N-CH, 40V, 5A, DFN2020 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
UT6KB5TCR
ActiveRohm Semiconductor
DUAL MOSFET, N-CH, 40V, 5A, DFN2020 ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UT6KB5TCR |
|---|---|
| Configuration | 2 N-Channel (Dual) |
| Current - Continuous Drain (Id) @ 25°C | 5 A |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 3.5 nC |
| Input Capacitance (Ciss) (Max) @ Vds [Max] | 150 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | 6-PowerUDFN |
| Power - Max [Max] | 2 W |
| Supplier Device Package | HUML2020L8 |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id [Max] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.48 | |
| 10 | $ 0.93 | |||
| 25 | $ 0.79 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.54 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 0.87 | ||
| 10 | $ 0.78 | |||
| 25 | $ 0.74 | |||
| 100 | $ 0.61 | |||
| 250 | $ 0.57 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.40 | |||
| Tape & Reel (TR) | 3000 | $ 0.33 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.25 | |
| 10 | $ 0.81 | |||
| 25 | $ 0.72 | |||
| 50 | $ 0.63 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.52 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.44 | |||
Description
General part information
UT6KB5 Series
UT6KB5 is a low on-resistance MOSFET ideal for switching applications. This product includes two Nch 40V MOSFETs in DFN package.
