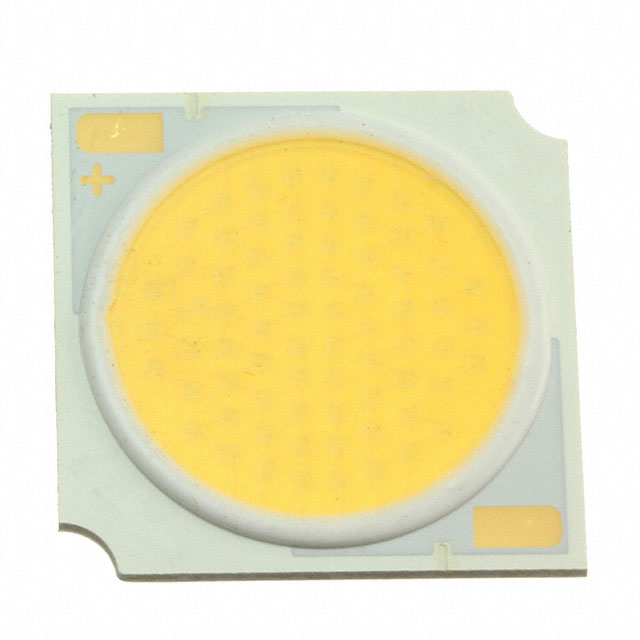

CLU044-1212B8-32GV1F6

Obsolete

Citizen Finedevice Co Ltd

LED COB WARM WHT SQUARE

Search across all available documentation for this part.

Obsolete

Citizen Finedevice Co Ltd

LED COB WARM WHT SQUARE

Technical Specifications

Parameters and characteristics for this part

Specification	CLU044-1212B8-32GV1F6

Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	95
Current - Max [Max]	2.16 A
Current - Test	1.08 A
Height [z]	1.4 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	22 mm
Lumens/Watt @ Current - Test	102 lm/W
Luminous Flux @ Current/Temperature	3948 lm
Size / Dimension [x]	28 mm
Size / Dimension [y]	28 mm
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	35.7 V

Part	Color	Current - Test	Current - Max [Max]	CRI (Color Rendering Index)	Type	Lens Type	Lumens/Watt @ Current - Test	Height [z]	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	Configuration
Citizen Finedevice Co Ltd CLU044-1212B8-32GV1F6	Warm White	1.08 A	2.16 A	95	Chip On Board (COB)	Flat	102 lm/W	1.4 mm	22 mm	35.7 V	3948 lm	28 mm	28 mm	Square
Citizen Finedevice Co Ltd CLU044-1812B8-LPGV1F7	Pink	1.08 A	2.16 A		Chip On Board (COB)	Flat	64 lm/W	1.4 mm	22 mm		3682 lm	28 mm	28 mm	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) - White, Warm Square
