DBN0.75BK50
ActiveTechflex
DURA BRAID 3/4" BLACK 50'
Deep-Dive with AI
Search across all available documentation for this part.
DBN0.75BK50
ActiveTechflex
DURA BRAID 3/4" BLACK 50'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DBN0.75BK50 |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant, Puncture Resistant |
| Color | Black |
| Diameter - Inside [diameter] | 19.05 mm |
| Diameter - Inside [diameter] | 0.75 in |
| Diameter - Outside [diameter] | 22.3 mm |
| Diameter - Outside [diameter] | 0.878 " |
| Environment Protection | UV Resistant |
| Features | Salt Resistant, Chemical Resistant, Snag Resistant |
| Length | 15.24 m |
| Length [x] | 50 ft |
| Liquid Protection | Gasoline Resistant |
| Material | Polyethylene Terephthalate (PET), Halogen Free |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -45 °C |
| Type | Sleeving |
| Type Attributes | Braided |
| Wall Thickness | 1.63 mm |
| Wall Thickness | 0.064 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 102.15 | |
| 2 | $ 93.94 | |||
| 3 | $ 89.46 | |||
| 5 | $ 84.11 | |||
| 7 | $ 80.76 | |||
| 10 | $ 77.36 | |||
| 25 | $ 69.26 | |||
| 50 | $ 63.70 | |||
| 100 | $ 58.59 | |||
Description
General part information
DBN0 Series

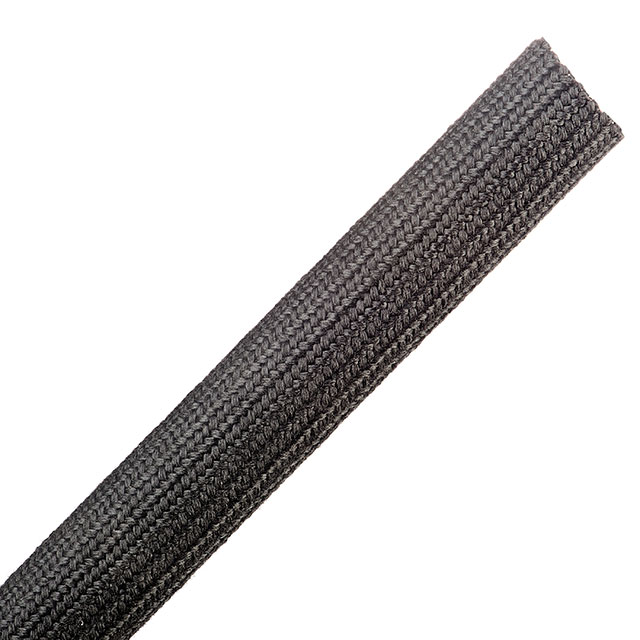

Black Polyethylene Terephthalate (PET), Halogen Free Braided Sleeving 0.750" (19.05mm) 50.00' (15.24m)
Documents
Technical documentation and resources
No documents available
