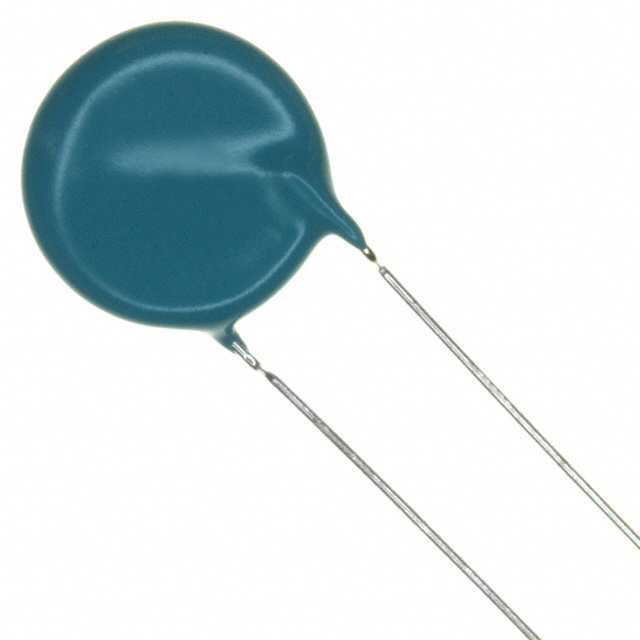

DEA1X3D391JA3B

Obsolete

Murata Power Solutions Inc.

CAP CER 390PF 2KV SL RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DEA1X3D391JA3B

Obsolete

Murata Power Solutions Inc.

CAP CER 390PF 2KV SL RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DEA1X3D391JA3B

Applications	General Purpose
Capacitance	390 pF
Features	High Voltage
Height - Seated (Max) [Max]	0.63 in
Height - Seated (Max) [Max]	16 mm
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lead Style	Formed Leads
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-25 °C
Package / Case	Disc, Radial
Size / Dimension [diameter]	0.512 in
Size / Dimension [diameter]	13 mm
Temperature Coefficient	SL
Tolerance	5 %
Voltage - Rated	2 kV
Voltage - Rated	2000 V

DEA1X3D Series

Part	Tolerance	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Lead Style	Lead Spacing	Lead Spacing	Applications	Temperature Coefficient	Features	Voltage - Rated	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Murata Power Solutions Inc. DEA1X3D330JP2A	5 %	33 pF	0.295 in	7.5 mm	Disc Radial	Straight	5 mm	0.197 in	General Purpose	SL	High Voltage	2 kV	2000 V	125 °C	-25 °C	Through Hole	0.177 "	4.5 mm
Murata Power Solutions Inc. DEA1X3D330JC1B	5 %	33 pF	0.295 in	7.5 mm	Disc Radial	Straight	5 mm	0.197 in	General Purpose	SL	High Voltage	2 kV	2000 V	125 °C	-25 °C	Through Hole	0.177 "	4.5 mm
Murata Power Solutions Inc. DEA1X3D470JA2B	5 %	47 pF			Disc Radial	Formed Leads	5 mm	0.197 in	General Purpose	SL	High Voltage	2 kV	2000 V	125 °C	-25 °C	Through Hole	0.236 in	6 mm	0.354 in	9 mm
Murata Power Solutions Inc. DEA1X3D680JA2B	5 %	68 pF			Disc Radial	Formed Leads	5 mm	0.197 in	General Purpose	SL	High Voltage	2 kV	2000 V	125 °C	-25 °C	Through Hole	0.236 in	6 mm	0.354 in	9 mm
Murata Power Solutions Inc. DEA1X3D101JN2A	5 %	100 pF			Disc Radial	Formed Leads	5 mm	0.197 in	General Purpose	SL	High Voltage	2 kV	2000 V	125 °C	-25 °C	Through Hole	0.276 in	7 mm	0.394 in	10 mm
Murata Power Solutions Inc. DEA1X3D391JA3B	5 %	390 pF			Disc Radial	Formed Leads	7.5 mm	0.295 in	General Purpose	SL	High Voltage	2 kV	2000 V	125 °C	-25 °C	Through Hole	0.512 in	13 mm	0.63 in	16 mm
Murata Power Solutions Inc. DEA1X3D151JA2B	5 %	150 pF	0.433 in	11 mm	Disc Radial	Formed Leads	5 mm	0.197 in	General Purpose	SL	High Voltage	2 kV	2000 V	125 °C	-25 °C	Through Hole	0.315 "	8 mm
Murata Power Solutions Inc. DEA1X3D680JB2B	5 %	68 pF			Disc Radial	Formed Leads	5 mm	0.197 in	General Purpose	SL	High Voltage	2 kV	2000 V	125 °C	-25 °C	Through Hole	0.236 in	6 mm	0.354 in	9 mm
Murata Power Solutions Inc. DEA1X3D220JD1B	5 %	22 pF	0.295 in	7.5 mm	Disc Radial	Straight	5 mm	0.197 in	General Purpose	SL	High Voltage	2 kV	2000 V	125 °C	-25 °C	Through Hole	0.177 "	4.5 mm
Murata Power Solutions Inc. DEA1X3D100JC1B	5 %	10 pF	0.295 in	7.5 mm	Disc Radial	Straight	5 mm	0.197 in	General Purpose	SL	High Voltage	2 kV	2000 V	125 °C	-25 °C	Through Hole	0.177 "	4.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DEA1X3D Series

390 pF ±5% 2000V (2kV) Ceramic Capacitor SL Radial, Disc
