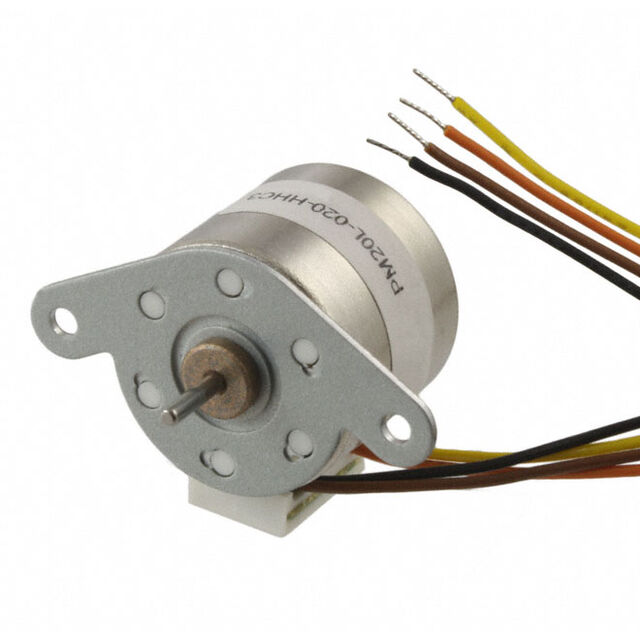

PM20L-020-HHC3
ActiveNMB TECHNOLOGIES
STEPPER MOTOR, PERMANENT MAGNET, PERMANENT MAGNET, BIPOLAR, 18 °, 14.7 MN-M, 400 MA
Deep-Dive with AI
Search across all available documentation for this part.
PM20L-020-HHC3
ActiveNMB TECHNOLOGIES
STEPPER MOTOR, PERMANENT MAGNET, PERMANENT MAGNET, BIPOLAR, 18 °, 14.7 MN-M, 400 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PM20L-020-HHC3 |
|---|---|
| Coil Resistance | 13 Ohms |
| Coil Type | Bipolar |
| Current Rating (Amps) | 400 mA |
| Diameter - Shaft [diameter] | 0.059 in |
| Diameter - Shaft [diameter] | 1.5 mm |
| Features | Round Shaft |
| Length - Shaft and Bearing [x] | 0.315 in |
| Length - Shaft and Bearing [x] | 8 mm |
| Mounting Hole Spacing | 28 mm |
| Mounting Hole Spacing | 1.1 in |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 20 mm |
| Size / Dimension [diameter] | 0.787 in |
| Step Angle | 18 ° |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 2.1 oz-in |
| Torque - Holding (oz-in / mNm) | 15 mNm |
| Type | Permanent Magnet |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PM20L Series
Bipolar Stepper Motor Permanent Magnet Frame Size 20.0 Step 400 mA 24VDC
