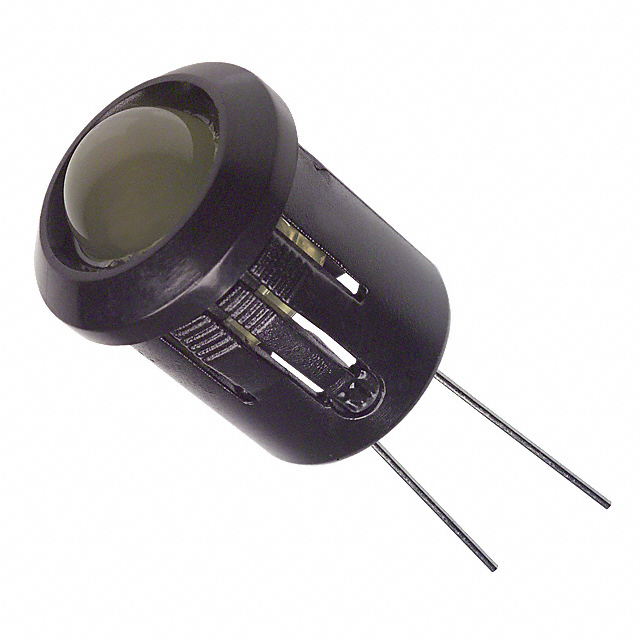

SSI-LXH8080YD

Active

Lumex Opto/Components Inc.

LED 8MM YELLOW DIFF PANEL MOUNT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 8MM YELLOW DIFF PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Type	Lens Transparency	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Voltage	Lens Size [diameter]	Current	Viewing Angle	Wavelength - Peak	Lamp Color	Lens Color	Millicandela Rating	Lens Style
Lumex Opto/Components Inc. SSI-LXH8080GD	LED	Diffused	Round	0.47 in	11.94 mm	2.2 V	8 mm	25 mA	60 °	565 nm	Green	Green	30 mcd	Round with Domed Top
Lumex Opto/Components Inc. SSI-LXH8080ID	LED	Diffused	Round	0.47 in	11.94 mm	2 V	8 mm	30 mA	60 °	635 nm	Red	Red	40 mcd	Round with Domed Top
Lumex Opto/Components Inc. SSI-LXH8080SRD	LED	Diffused	Round	0.47 in	11.94 mm	1.7 V	8 mm	30 mA	60 °	660 nm	Red	Red	80 mcd	Round with Domed Top
Lumex Opto/Components Inc. SSI-LXH8080YD	LED	Diffused	Round	0.47 in	11.94 mm	2.1 V	8 mm	30 mA	60 °	585 nm	Yellow	Yellow	30 mcd	Round with Domed Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Panel Indicator Yellow Diffused 60° 2.1V 30mA

Technical documentation and resources

No documents available
