EPS150080UPS-P5P-KH
ObsoleteCUI Inc.

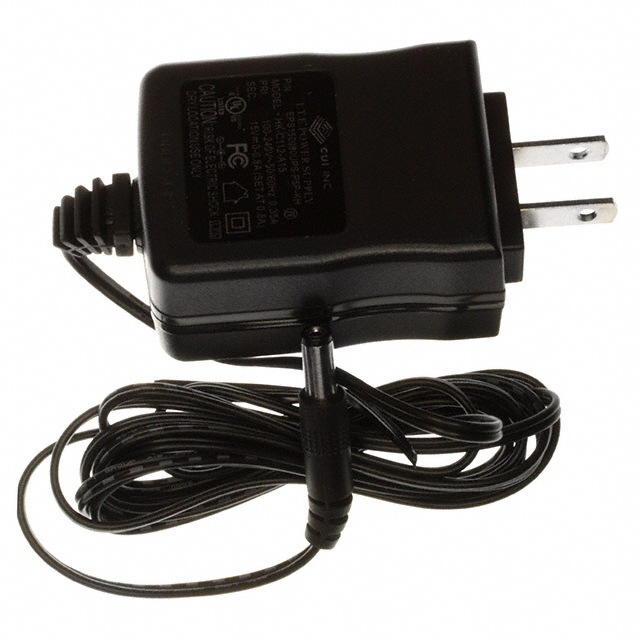

AC/DC WALL MOUNT ADAPTER 15V 12W
Deep-Dive with AI
Search across all available documentation for this part.
EPS150080UPS-P5P-KH
ObsoleteCUI Inc.
AC/DC WALL MOUNT ADAPTER 15V 12W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EPS150080UPS-P5P-KH |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus |
| Cord Length | 1.83 m |
| Cord Length | 72 in |
| Current - Output (Max) [Max] | 800 mA |
| Efficiency | Level IV |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 500 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [z] | 12 mm |
| Polarization | Positive Center |
| Power (Watts) | 12 W |
| Region Utilized | North America |
| Size / Dimension [x] | 30 mm |
| Size / Dimension [x] | 1.18 " |
| Size / Dimension [y] | 1.77 " |
| Size / Dimension [y] | 45.5 mm |
| Size / Dimension [z] | 2.43 " |
| Size / Dimension [z] | 61.8 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 15 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EPS150080 Series
15V 12 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
