Q-0202T0001.75M

Active

Amphenol Custom Cable

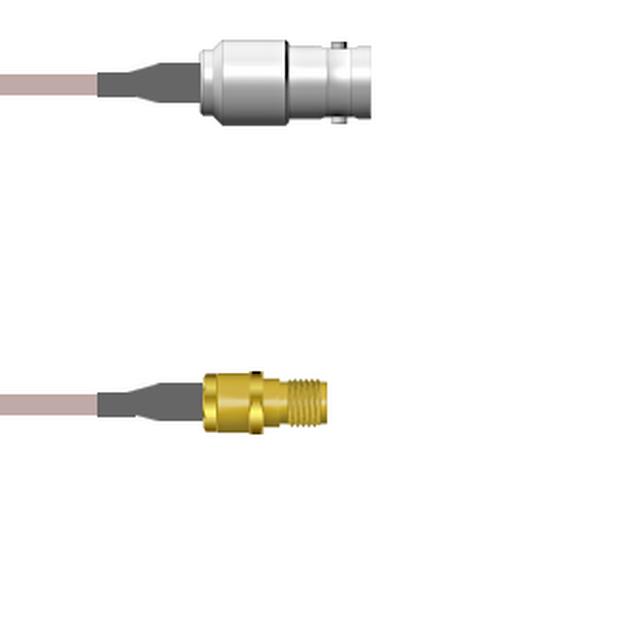

CBL ASSY BNC-SMA JCK-JCK 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0202T0001.75M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JCK-JCK 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0202T0001.75M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMA Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0202T0 Series

Part	1st Connector Mounting Type	2nd Connector	Features	Style	Frequency - Max [Max]	Overall Impedance	Length	Length	Color	2nd Contact Gender	1st Contact Gender	2nd Connector Mounting Type	1st Connector	Cable Type	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0202T0001009i	Free Hanging (In-Line)	SMA Jack	Shielded	BNC to SMA	4 GHz	50 Ohms	9 "	228.6 mm	Copper	Female	Female	Free Hanging (In-Line)	BNC Jack	RG-178
Amphenol Custom Cable Q-0202T0001003i	Free Hanging (In-Line)	SMA Jack	Shielded	BNC to SMA	4 GHz	50 Ohms	3 in	76.2 mm	Copper	Female	Female	Free Hanging (In-Line)	BNC Jack	RG-178
Amphenol Custom Cable Q-0202T0001002M	Free Hanging (In-Line)	SMA Jack	Shielded	BNC to SMA	4 GHz	50 Ohms	78.7 in	2 m	Copper	Female	Female	Free Hanging (In-Line)	BNC Jack	RG-178	6.6 ft
Amphenol Custom Cable Q-0202T0001.75M	Free Hanging (In-Line)	SMA Jack	Shielded	BNC to SMA	4 GHz	50 Ohms	29.53 "	750 mm	Copper	Female	Female	Free Hanging (In-Line)	BNC Jack	RG-178
Amphenol Custom Cable Q-0202T0001006i	Free Hanging (In-Line)	SMA Jack	Shielded	BNC to SMA	4 GHz	50 Ohms	6 in	152.4 mm	Copper	Female	Female	Free Hanging (In-Line)	BNC Jack	RG-178
Amphenol Custom Cable Q-0202T0001.25M	Free Hanging (In-Line)	SMA Jack	Shielded	BNC to SMA	4 GHz	50 Ohms			Copper	Female	Female	Free Hanging (In-Line)	BNC Jack	RG-178		9.843 "	250 mm
Amphenol Custom Cable Q-0202T00012.5M	Free Hanging (In-Line)	SMA Jack	Shielded	BNC to SMA	4 GHz	50 Ohms	98.4 in	2.5 m	Copper	Female	Female	Free Hanging (In-Line)	BNC Jack	RG-178	8.2 '
Amphenol Custom Cable Q-0202T0001024i	Free Hanging (In-Line)	SMA Jack	Shielded	BNC to SMA	4 GHz	50 Ohms	24 "	609.6 mm	Copper	Female	Female	Free Hanging (In-Line)	BNC Jack	RG-178
Amphenol Custom Cable Q-0202T0001018i	Free Hanging (In-Line)	SMA Jack	Shielded	BNC to SMA	4 GHz	50 Ohms			Copper	Female	Female	Free Hanging (In-Line)	BNC Jack	RG-178			457.2 mm	457.2 mm
Amphenol Custom Cable Q-0202T0001108i	Free Hanging (In-Line)	SMA Jack	Shielded	BNC to SMA	4 GHz	50 Ohms	108 in	2.7 m	Copper	Female	Female	Free Hanging (In-Line)	BNC Jack	RG-178	9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 80.80
		25	$ 79.22
		50	$ 77.63
		100	$ 76.05
		250	$ 74.47

Description

General part information

Q-0202T0 Series

Cable Assembly Coaxial BNC to SMA RG-178 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
