011024PW037
ActiveEssentra Access Solutions

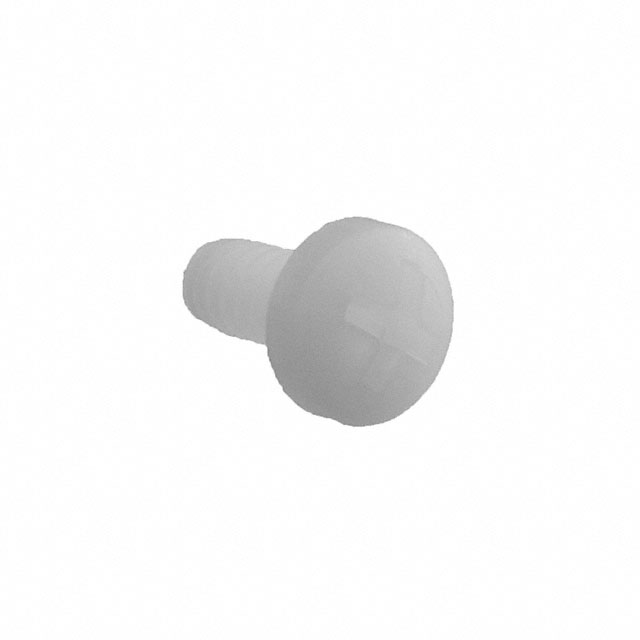

PAN PHILLIPS SCREW 10-24 THREAD
Deep-Dive with AI
Search across all available documentation for this part.
011024PW037
ActiveEssentra Access Solutions
PAN PHILLIPS SCREW 10-24 THREAD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 011024PW037 |
|---|---|
| Drive Type | Phillips |
| Head Diameter [diameter] | 9.27 mm |
| Head Diameter [diameter] | 0.365 in |
| Head Height [z] | 0.15 in |
| Head Height [z] | 3.81 mm |
| Length - Below Head | 0.375 " |
| Length - Below Head | 9.53 mm |
| Length - Below Head | 0.375 " |
| Length - Overall | 13.34 mm |
| Length - Overall [x] | 0.525 in |
| Material | Nylon |
| Screw Head Type | Pan Head |
| Thread Size | #10-24 |
| Type | Machine Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.10 | |
| 5 | $ 0.05 | |||
| 10 | $ 0.05 | |||
| 25 | $ 0.04 | |||
| 50 | $ 0.04 | |||
| 100 | $ 0.03 | |||
| 250 | $ 0.03 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.03 | |||
Description
General part information
011024PW Series
#10-24 Pan Head Machine Screw Phillips Drive Nylon
Documents
Technical documentation and resources
No documents available
