8314/2

Active

ebm-papst Inc.

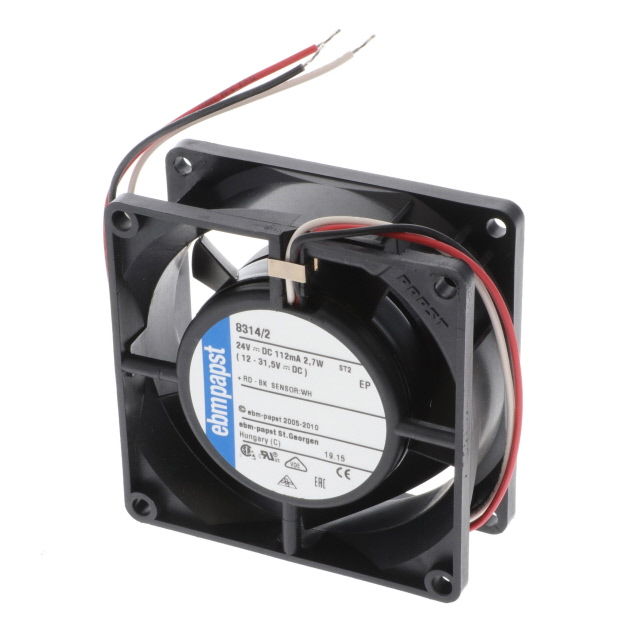

FAN AXIAL 80X32MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8314/2

Active

ebm-papst Inc.

FAN AXIAL 80X32MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8314/2

Air Flow	31.8 CFM
Air Flow	0.89 m³/min
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	36 dB
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
Power (Watts)	2.7 W
RPM	3300 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	31.5 VDC
Voltage Range [Min]	12 VDC
Width [y]	32 mm

8314 Series

Part	RPM	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Bearing Type	Material - Frame	Lifetime @ Temp.	Power (Watts)	Termination	Features	Noise	Width [y]	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Fan Type	Weight	Weight	Approval Agency	Static Pressure	Static Pressure	Operating Temperature [Max]	Ingress Protection
ebm-papst Inc. 8314/2H	5000 RPM	24 VDC	80 mm	80 mm	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	55000 Hrs	6 W	3 Wire Leads	Speed Sensor (Tach)	48 dB	32 mm	12 VDC	28 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	1.32 m³/min	47.1 CFM	-20 C	-20 °C	75 ░C	75 °C	Tubeaxial
ebm-papst Inc. 8314M	3000 RPM	24 VDC	80 mm	80 mm	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	70000 Hrs	2.1 W	2 Wire Leads		34 dB(A)	32 mm	12 VDC	28 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	0.792 m³/min	28.3 CFM	-20 C	-20 °C	75 ░C	75 °C	Tubeaxial	170.1 g	0.375 lb	CE CSA UL VDE
ebm-papst Inc. 8314/2	3300 RPM	24 VDC	80 mm	80 mm	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	70000 Hrs	2.7 W	3 Wire Leads	Speed Sensor (Tach)	36 dB	32 mm	12 VDC	31.5 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	0.89 m³/min	31.8 CFM	-20 C	-20 °C	75 ░C	75 °C	Tubeaxial
ebm-papst Inc. 8314/2HU-507	5000 RPM	24 VDC	80 mm	80 mm	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		7.2 W	3 Wire Leads	Auto Restart Locked Rotor Protection Speed Sensor (Tach)	48 dB	32 mm	12 VDC	28 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	1.32 m³/min	47.1 CFM	-20 C	-20 °C	65 °C		Tubeaxial			CE CSA EAC UL VDE	138 Pa	0.554 in H2O	65 °C
ebm-papst Inc. 8314/17V		24 VDC	80 mm	80 mm	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced			2 Wire Leads			32 mm			Fiberglass Reinforced Nylon Polyamide (PA)	0.896 m³/min	32 CFM					Tubeaxial
ebm-papst Inc. 8314HU	5000 RPM	24 VDC	80 mm	80 mm	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		6 W	2 Wire Leads		48 dB	32 mm	12 VDC	28 VDC	Fiberglass Reinforced Nylon Polyamide (PA)	1.32 m³/min	47.1 CFM	-20 C	-20 °C	75 ░C	75 °C	Tubeaxial	170.1 g	0.375 lb	UL				IP68 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.99
		10	$ 39.87
		25	$ 36.49
		50	$ 35.25
Newark	Each	25	$ 46.82
		50	$ 43.89
		100	$ 41.50
		250	$ 37.78

Description

General part information

8314 Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 31.8 CFM (0.890m³/min) 3 Wire Leads
