Technical Specifications
Parameters and characteristics for this part
| Specification | TIP36AG |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 25 A |
| Current - Collector Cutoff (Max) [Max] | 1 mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 15 |
| Frequency - Transition | 3 MHz |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |

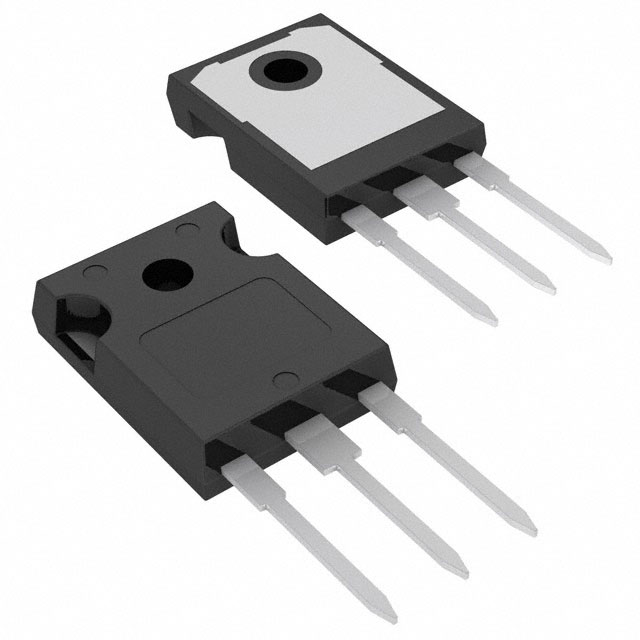

| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 4 V |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.64 | |
| 10 | $ 3.07 | |||
| 100 | $ 2.18 | |||
| 500 | $ 1.79 | |||
| 1000 | $ 1.67 | |||
| 2000 | $ 1.64 | |||
| ON Semiconductor | N/A | 1 | $ 1.75 | |
Description
General part information
TIP36A Series
The Bipolar Power Transistor is designed for general purpose power amplifier and switching applications. The TIP35A, TIP35B, TIP35C (NPN); TIP36A, TIP36B, TIP36C (PNP) are complementary devices.
