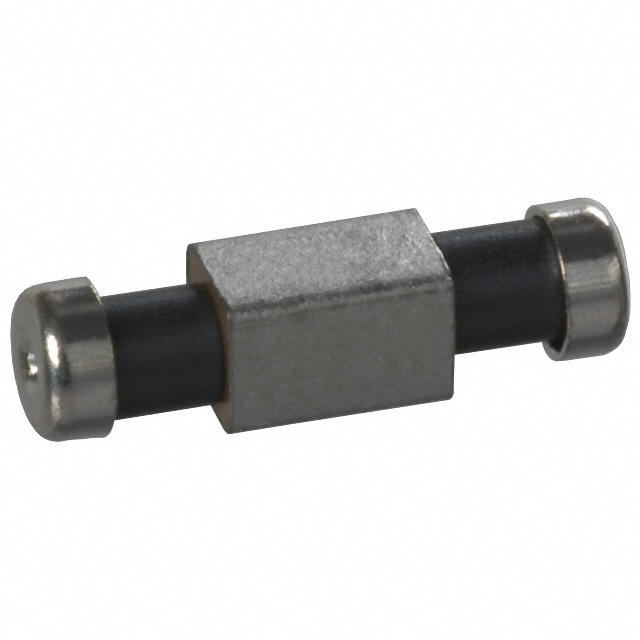

NFE61PT361B1H9L
ActiveMurata Power Solutions Inc.
FILTER LC(T) 360PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NFE61PT361B1H9L
ActiveMurata Power Solutions Inc.
FILTER LC(T) 360PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NFE61PT361B1H9L |
|---|---|
| Applications | General Purpose |
| Current | 2 A |
| ESD Protection | False |
| Filter Order | 3 |
| Height [z] | 1.9 mm |
| Height [z] | 0.075 in |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3 Lead |
| Package / Case | 2706 (6816 Metric) |
| Size / Dimension [x] | 0.268 in |
| Size / Dimension [x] | 6.8 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Technology | LC (T-Type) |
| Type | Low Pass |
| Values | 360 pF |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.61 | |||
| 25 | $ 0.50 | |||
| 50 | $ 0.45 | |||
| 100 | $ 0.41 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.64 | ||
| 10 | $ 0.61 | |||
| 25 | $ 0.50 | |||
| 50 | $ 0.45 | |||
| 100 | $ 0.41 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.33 | |||
| Tape & Reel (TR) | 2500 | $ 0.31 | ||
| 5000 | $ 0.29 | |||
| 12500 | $ 0.27 | |||
| 25000 | $ 0.27 | |||
Description
General part information
NFE61PT Series
LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 360pF 2 A 2706 (6816 Metric), 3 PC Pad
