R404774100

Active

Radiall USA, Inc.

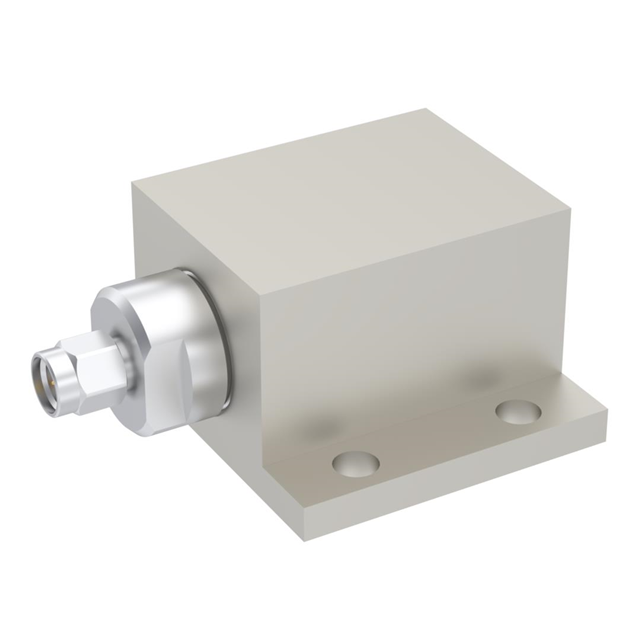

TERMINATION : SMA M 6 GHZ 100W

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TERMINATION : SMA M 6 GHZ 100W

Technical Specifications

Parameters and characteristics for this part

Specification	R404774100

Body Material	Stainless Steel
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Panel Mount, Square Flange

Part	Contact Material	Connector Style	Mounting Type	Connector Type	Dielectric Material	Contact Finish	Body Material	Frequency - Max [Max]	Impedance	Body Finish
Radiall USA, Inc. R404774000	Beryllium Copper	SMA	Cap Free Hanging	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Gold	Stainless Steel	6000 MHz	50 Ohms
Radiall USA, Inc. R404775100	Beryllium Copper	SMA	Panel Mount Square Flange	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Gold	Stainless Steel	6000 MHz	50 Ohms
Radiall USA, Inc. R404775000	Beryllium Copper	SMA	Cap Free Hanging	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Gold	Stainless Steel	6000 MHz	50 Ohms
Radiall USA, Inc. R404774100	Beryllium Copper	SMA	Panel Mount Square Flange	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Gold	Stainless Steel	6000 MHz	50 Ohms
Radiall USA, Inc. R404779000	Beryllium Copper	4.3/10	Cap Free Hanging	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Gold	Brass	6000 MHz	50 Ohms	Nickel
Radiall USA, Inc. R404771000	Beryllium Copper	N Type	Cap Free Hanging	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Gold	Brass	6000 MHz	50 Ohms	White Bronze
Radiall USA, Inc. R404770000	Beryllium Copper	N Type	Cap Free Hanging	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Gold	Stainless Steel	6000 MHz	50 Ohms
Radiall USA, Inc. R404772000	Beryllium Copper	TNC	Cap Free Hanging	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Gold	Stainless Steel	6000 MHz	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 628.97

General part information

Terminator Coax Connector Plug, Male Pin SMA 50 Ohms
