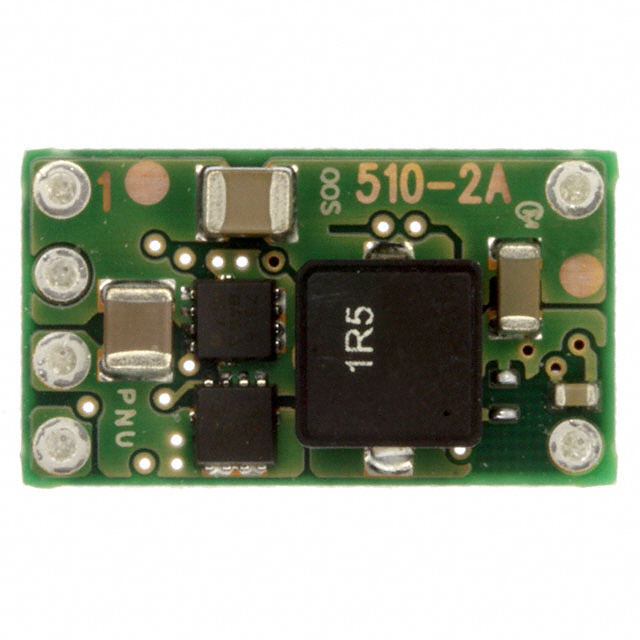

MPDTH12050WAH
ObsoleteMurata Power Solutions Inc.
DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, HYBRID, MODULE-6
Deep-Dive with AI
Search across all available documentation for this part.
MPDTH12050WAH
ObsoleteMurata Power Solutions Inc.
DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, HYBRID, MODULE-6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPDTH12050WAH |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 93 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 33 W |
| Size / Dimension [x] | 0.87 in |
| Size / Dimension [x] | 22.1 mm |
| Size / Dimension [y] | 0.49 in |
| Size / Dimension [y] | 12.6 mm |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.33 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MPDTH12 Series
Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 5.5V 6A 10.8V - 13.2V Input
Documents
Technical documentation and resources
No documents available
