430011-509
Laird Thermal Systems, Inc.

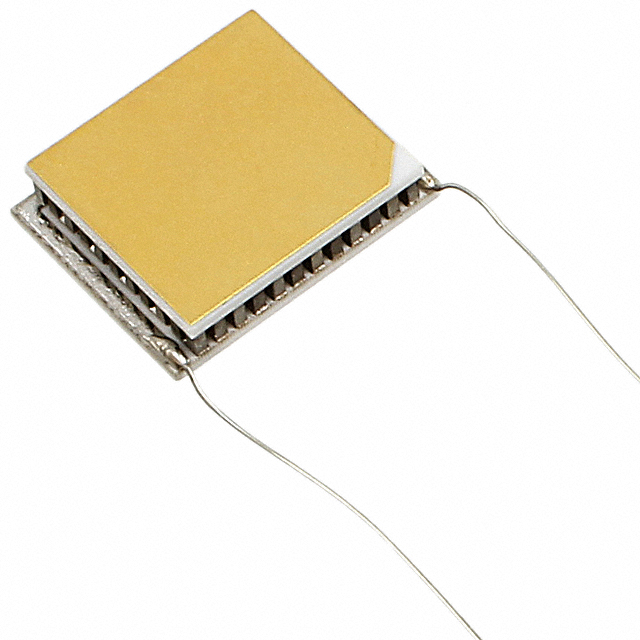

PELTIER OT12,66,F0,1211,GG,W2.25
Deep-Dive with AI
Search across all available documentation for this part.
430011-509
Laird Thermal Systems, Inc.
PELTIER OT12,66,F0,1211,GG,W2.25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430011-509 |
|---|---|
| Current - Max [Max] | 1.2 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 3.05 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 5.4 W |
| Resistance | 5.74 Ohms |
| Size / Dimension [x] | 14.4 mm |
| Size / Dimension [y] | 11.3 mm |
| Voltage - Max [Max] | 7.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.50 | |
Description
General part information
430011 Series
Peltier Module 5.4W @ 25°C 1.2 A 80°C
