0394000306

Obsolete

Molex

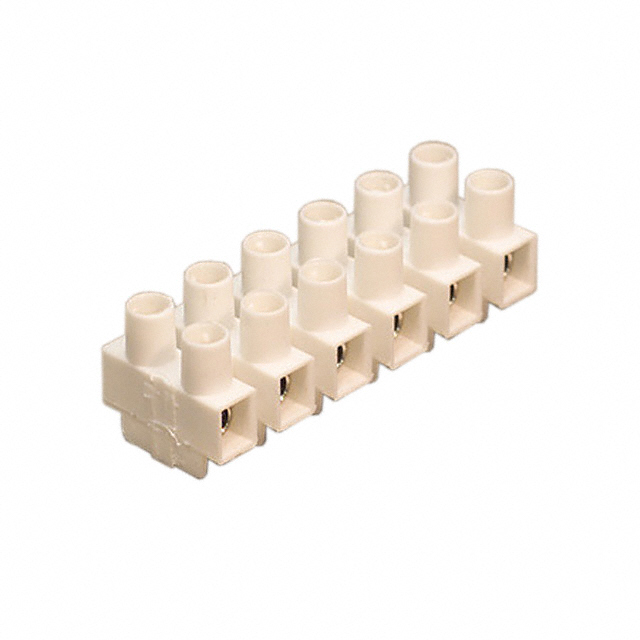

CONN TERM STRIP 6CIRC 0.394"

Search across all available documentation for this part.

Obsolete

Molex

CONN TERM STRIP 6CIRC 0.394"

Technical Specifications

Parameters and characteristics for this part

Specification	0394000306

Barrier Type	Enclosed
Bottom Termination	Closed
Color	White
Current Rating (Amps)	16 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Panel, Chassis
Number of Circuits	6
Number of Rows	2
Number of Wire Entries	12
Operating Temperature	110 °C
Pitch [x]	0.394 in
Pitch [x]	10 mm
Terminal Block Type	Eurostyle Terminal Strip
Terminal Screw Finish	Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	10 AWG

Part	Operating Temperature	Material - Insulation	Number of Circuits	Terminal Screw Material	Number of Wire Entries	Terminal Screw Finish	Wire Gauge [Max]	Wire Gauge [Min]	Number of Rows	Color	Mounting Type	Barrier Type	Top Termination	Terminal Block Type	Bottom Termination	Material Flammability Rating	Pitch [x]	Pitch [x]	Current Rating (Amps)	Voltage Rating
Molex 0394000403	110 °C	Polyamide (PA66) Nylon 6/6	3	Steel	6	Zinc	24 AWG	10 AWG	2	White	Chassis Panel	Enclosed	Screws	Eurostyle Terminal Strip	Closed	UL94 V-2	0.394 in	10 mm	25 A	300 VDC
Molex 0394000303	110 °C	Polyamide (PA66) Nylon 6/6	3	Steel	6	Zinc	24 AWG	10 AWG	2	White	Chassis Panel	Enclosed	Screws	Eurostyle Terminal Strip	Closed	UL94 V-2	0.394 in	10 mm	16 A	300 VDC
Molex 0394000306	110 °C	Polyamide (PA66) Nylon 6/6	6	Steel	12	Zinc	24 AWG	10 AWG	2	White	Chassis Panel	Enclosed	Screws	Eurostyle Terminal Strip	Closed	UL94 V-2	0.394 in	10 mm	16 A	300 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Circuit 0.394" (10.00mm) Eurostyle Terminal Strip Connector Screws
