ABJ1512609

Obsolete

Panasonic Electric Works

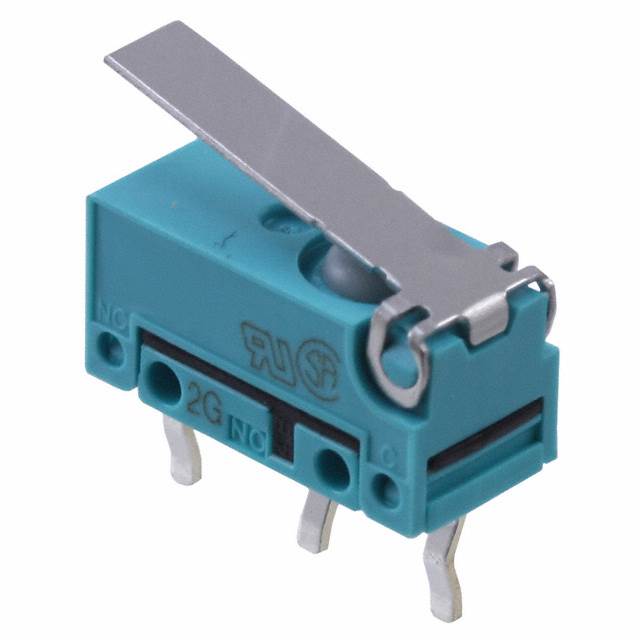

SWITCH SNAP ACTION SPDT 2A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

ABJ1512609

Obsolete

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 2A 125V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ABJ1512609

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	2 A
Differential Travel	0.5 mm
Differential Travel	0.02 in
Electrical Life	6000 Cycles
Ingress Protection	IP50
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	65 gf
Operating Position	6.8 mm
Operating Position	0.268 "
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.02 in
Overtravel	0.5 mm
Pretravel	0.12 in
Pretravel	3 mm
Release Force	5.099 gf
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

ABJ151 Series

Part	Release Force	Ingress Protection	Circuit	Operating Position	Operating Position	Operating Force	Pretravel	Pretravel	Voltage Rating - AC	Electrical Life	Actuator Type	Overtravel	Overtravel	Differential Travel	Differential Travel	Switch Function	Voltage Rating - DC	Current Rating (Amps)	Mechanical Life	Mounting Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Operating Position [x]	Operating Position [x]
Panasonic Electric Works ABJ151241	3.059 gf	IP50	SPDT	6.8 mm	0.268 "	40 gf	0.12 in	3 mm	125 V	100000 Cycles	Lever Straight	0.02 in	0.5 mm	0.5 mm	0.02 in	On-Mom	30 V	100 mA	1000000 Cycles	Through Hole	PC Pin	85 °C	-40 °C
Panasonic Electric Works ABJ151060	25 gf	IP50	SPDT	5.5 mm	0.217 in	200 gf	0.024 in	0.6 mm	125 V	30000 Cycles	Round (Pin Plunger)	0.01 in	0.25 mm	0.13 mm	0.005 in	On-Mom	30 V	2 A	1000000 Cycles	Through Hole	PC Pin	85 °C	-40 °C
Panasonic Electric Works ABJ1510409	15 gf	IP50	SPDT	5.5 mm	0.217 in	125 gf	0.024 in	0.6 mm	125 V	6000 Cycles	Round (Pin Plunger)	0.01 in	0.25 mm	0.13 mm	0.005 in	On-Mom	30 V		1000000 Cycles	Through Hole	PC Pin	85 °C	-40 °C
Panasonic Electric Works ABJ1512419	3.059 gf	IP50	SPDT	6.8 mm	0.268 "	40 gf	0.12 in	3 mm	125 V	6000 Cycles	Lever Straight	0.02 in	0.5 mm	0.5 mm	0.02 in	On-Mom	30 V	100 mA	1000000 Cycles	Through Hole	PC Pin	85 °C	-40 °C
Panasonic Electric Works ABJ151460	5.099 gf	IP50	SPDT			65 gf	0.12 in	3 mm	125 V	30000 Cycles	Lever Simulated Roller	0.02 in	0.5 mm	0.5 mm	0.02 in	On-Mom	30 V	2 A	1000000 Cycles	Through Hole	PC Pin	85 °C	-40 °C	9.8 mm	0.386 in
Panasonic Electric Works ABJ1512609	5.099 gf	IP50	SPDT	6.8 mm	0.268 "	65 gf	0.12 in	3 mm	125 V	6000 Cycles	Lever Straight	0.02 in	0.5 mm	0.5 mm	0.02 in	On-Mom	30 V	2 A	1000000 Cycles	Through Hole	PC Pin	85 °C	-40 °C
Panasonic Electric Works ABJ151041	15 gf	IP50	SPDT	5.5 mm	0.217 in	125 gf	0.024 in	0.6 mm	125 V	100000 Cycles	Round (Pin Plunger)	0.01 in	0.25 mm	0.13 mm	0.005 in	On-Mom	30 V	100 mA	1000000 Cycles	Through Hole	PC Pin	85 °C	-40 °C
Panasonic Electric Works ABJ1510419	15 gf	IP50	SPDT	5.5 mm	0.217 in	125 gf	0.024 in	0.6 mm	125 V	6000 Cycles	Round (Pin Plunger)	0.01 in	0.25 mm	0.13 mm	0.005 in	On-Mom	30 V	100 mA	1000000 Cycles	Through Hole	PC Pin	85 °C	-40 °C
Panasonic Electric Works ABJ1514619	5.099 gf	IP50	SPDT			65 gf	0.12 in	3 mm	125 V	6000 Cycles	Lever Simulated Roller	0.02 in	0.5 mm	0.5 mm	0.02 in	On-Mom	30 V	100 mA	1000000 Cycles	Through Hole	PC Pin	85 °C	-40 °C	9.8 mm	0.386 in
Panasonic Electric Works ABJ151461	5.099 gf	IP50	SPDT			65 gf	0.12 in	3 mm	125 V	100000 Cycles	Lever Simulated Roller	0.02 in	0.5 mm	0.5 mm	0.02 in	On-Mom	30 V	100 mA	1000000 Cycles	Through Hole	PC Pin	85 °C	-40 °C	9.8 mm	0.386 in
