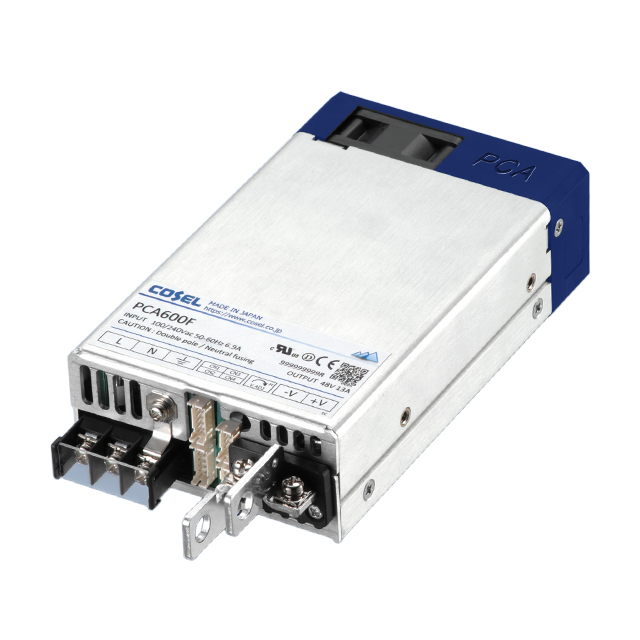

PCA600F-48
ActiveCosel USA, Inc.
AC/DC CONVERTER 48V 624W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PCA600F-48 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CSA, D-Mark, cURus, UL, CE |
| Current - Output 1 | 13 A |
| Efficiency | 93 % |
| Features | Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 624 W |
| Size / Dimension [x] | 5.98 " |
| Size / Dimension [x] | 152 mm |
| Size / Dimension [y] | 89 mm |
| Size / Dimension [y] | 3.5 in |
| Size / Dimension [z] | 1.61 " |
| Size / Dimension [z] | 41 mm |
| Standard Number | 60950-1, 60601-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 88 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 48 V |
PCA600F Series
| Part | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Applications | Power (Watts) | Number of Outputs | Standard Number | Features | Current - Output 1 | Approval Agency | Mounting Type | Voltage - Isolation | Voltage - Output 1 | Type | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cosel USA, Inc. | 93 % | -20 C | 70 °C | 5.98 " | 1.61 " | 89 mm | 41 mm | 152 mm | 3.5 in | ITE (Commercial) Medical | 624 W | 1 | 60601-1 60950-1 62368-1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 13 A | CE CSA cURus D-Mark UL | Chassis Mount | 4000 V | 48 V | Enclosed | ||
Cosel USA, Inc. | 92 % | -20 C | 70 °C | 5.98 " | 1.61 " | 89 mm | 41 mm | 152 mm | 3.5 in | ITE (Commercial) Medical | 636 W | 1 | 60601-1 60950-1 62368-1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 53 A | CE CSA cURus D-Mark UL | Chassis Mount | 4000 V | 12 V | Enclosed | 264 VAC 370 VDC | 85 VAC 88 VDC |
Cosel USA, Inc. | 93 % | -20 C | 70 °C | 5.98 " | 1.61 " | 89 mm | 41 mm | 152 mm | 3.5 in | ITE (Commercial) Medical | 640 W | 1 | 60601-1 60950-1 62368-1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 20 A | CE CSA cURus D-Mark UL | Chassis Mount | 4000 V | 32 V | Enclosed | ||
Cosel USA, Inc. | 92 % | -20 C | 70 °C | 5.98 " | 1.61 " | 89 mm | 41 mm | 152 mm | 3.5 in | ITE (Commercial) Medical | 645 W | 1 | 60601-1 60950-1 62368-1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 43 A | CE CSA cURus D-Mark UL | Chassis Mount | 4000 V | 15 V | Enclosed | ||
Cosel USA, Inc. | 92 % | -20 C | 70 °C | 5.98 " | 1.61 " | 89 mm | 41 mm | 152 mm | 3.5 in | ITE (Commercial) Medical | 645 W | 1 | 60601-1 60950-1 62368-1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 43 A | CE CSA cURus D-Mark UL | Chassis Mount | 4000 V | 15 V | Enclosed | 264 VAC 370 VDC | 85 VAC 88 VDC |
Cosel USA, Inc. | 93 % | -20 C | 70 °C | 5.98 " | 1.61 " | 89 mm | 41 mm | 152 mm | 3.5 in | ITE (Commercial) Medical | 600 W | 1 | 60601-1 60950-1 62368-1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 27 A | CE CSA cURus D-Mark UL | Chassis Mount | 4000 V | 24 V | Enclosed | ||
Cosel USA, Inc. | 93 % | -20 C | 70 °C | 5.98 " | 1.61 " | 89 mm | 41 mm | 152 mm | 3.5 in | ITE (Commercial) Medical | 624 W | 1 | 60601-1 60950-1 62368-1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 13 A | CE CSA cURus D-Mark UL | Chassis Mount | 4000 V | 48 V | Enclosed | 264 VAC 370 VDC | 85 VAC 88 VDC |
Cosel USA, Inc. | 92 % | -20 C | 70 °C | 5.98 " | 1.61 " | 89 mm | 41 mm | 152 mm | 3.5 in | ITE (Commercial) Medical | 636 W | 1 | 60601-1 60950-1 62368-1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 53 A | CE CSA cURus D-Mark UL | Chassis Mount | 4000 V | 12 V | Enclosed | ||
Cosel USA, Inc. | 93 % | -20 C | 70 °C | 5.98 " | 1.61 " | 89 mm | 41 mm | 152 mm | 3.5 in | ITE (Commercial) Medical | 648 W | 1 | 60601-1 60950-1 62368-1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 27 A | CE CSA cURus D-Mark UL | Chassis Mount | 4000 V | 24 V | Enclosed | ||
Cosel USA, Inc. | 92 % | -20 C | 70 °C | 5.98 " | 1.61 " | 89 mm | 41 mm | 152 mm | 3.5 in | ITE (Commercial) Medical | 645 W | 1 | 60601-1 60950-1 62368-1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 43 A | CE CSA cURus D-Mark UL | Chassis Mount | 4000 V | 15 V | Enclosed | 264 VAC 370 VDC | 85 VAC 88 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 505.08 | |
| 5 | $ 488.78 | |||
| 10 | $ 472.49 | |||
Description
General part information
PCA600F Series
Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC, 88 ~ 370 VDC Input
