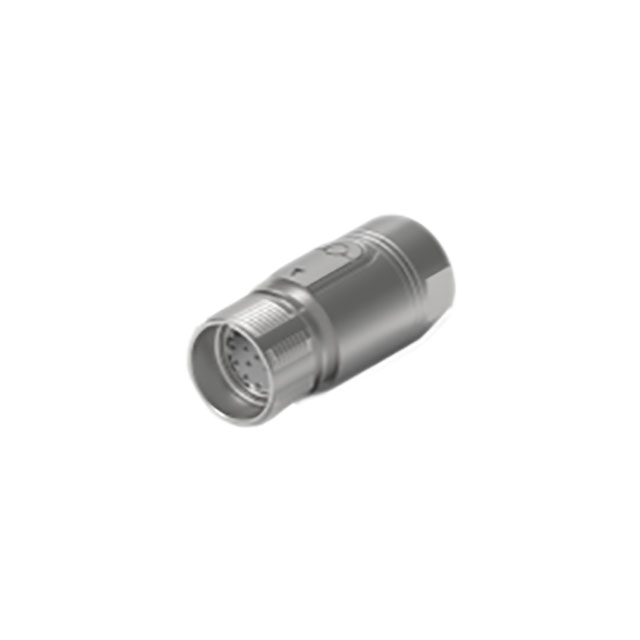

AKA034N00620200000

Active

TE Intercontec

CONN RCPT HSG MALE 17POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

AKA034N00620200000

Active

TE Intercontec

CONN RCPT HSG MALE 17POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AKA034N00620200000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Cable Clamp, Backshell
Housing Color	Silver
Includes	1 Backshell, 1 Connector, 1 Cable Clamp
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-17
Shielding	Shielded
Type	For Male Pins

AKA03 Series

Part	Features	Ingress Protection	Material Flammability Rating	Shell Finish	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Includes	Note	Housing Color	Insert Material	Connector Type	Shielding	Contact Shape	Type	Mounting Type	Shell Material	Fastening Type
TE Intercontec AKA034N00400100000	Backshell Cable Clamp	IP66/IP67	UL94 V-0	Nickel	M23-17	-20 C	130 °C	Keyed	1 Backshell 1 Cable Clamp 1 Connector	Contacts Not Included	Silver	Polybutylene Terephthalate (PBT)	Receptacle Housing	Shielded	Circular	For Male Pins	Free Hanging (In-Line)	Zinc Die Cast	Push-Twist
TE Intercontec AKA034N00610200000	Backshell Cable Clamp	IP66/IP67	UL94 V-0	Nickel	M23-17	-20 C	130 °C	Keyed	1 Backshell 1 Cable Clamp 1 Connector	Contacts Not Included	Silver	Polybutylene Terephthalate (PBT)	Receptacle Housing	Shielded	Circular	For Male Pins	Free Hanging (In-Line)	Zinc Die Cast	Push-Twist
TE Intercontec AKA034N00400200000	Backshell Cable Clamp	IP66/IP67	UL94 V-0	Nickel	M23-17	-20 C	130 °C	Keyed	1 Backshell 1 Cable Clamp 1 Connector	Contacts Not Included	Silver	Polybutylene Terephthalate (PBT)	Receptacle Housing	Shielded	Circular	For Male Pins	Free Hanging (In-Line)	Zinc Die Cast	Push-Twist
TE Intercontec AKA034N00600200000	Backshell Cable Clamp	IP66/IP67	UL94 V-0	Nickel	M23-17	-20 C	130 °C	Keyed	1 Backshell 1 Cable Clamp 1 Connector	Contacts Not Included	Silver	Polybutylene Terephthalate (PBT)	Receptacle Housing	Shielded	Circular	For Male Pins	Free Hanging (In-Line)	Zinc Die Cast	Push-Twist
TE Intercontec AKA034N00090200000	Backshell Cable Clamp	IP66/IP67	UL94 V-0	Nickel	M23-17	-20 C	130 °C	Keyed	1 Backshell 1 Cable Clamp 1 Connector	Contacts Not Included	Silver	Polybutylene Terephthalate (PBT)	Receptacle Housing	Shielded	Circular	For Male Pins	Free Hanging (In-Line)	Zinc Die Cast	Push-Twist
TE Intercontec AKA034N00620200000	Backshell Cable Clamp	IP66/IP67	UL94 V-0	Nickel	M23-17	-20 C	130 °C	Keyed	1 Backshell 1 Cable Clamp 1 Connector	Contacts Not Included	Silver	Polybutylene Terephthalate (PBT)	Receptacle Housing	Shielded	Circular	For Male Pins	Free Hanging (In-Line)	Zinc Die Cast	Push-Twist
TE Intercontec AKA034N00590038000	Backshell Cable Clamp	IP66/IP67	UL94 V-0	Nickel	M23-17	-20 C	130 °C	Keyed	1 Backshell 1 Cable Clamp 1 Connector	Contacts Not Included	Silver	Polybutylene Terephthalate (PBT)	Receptacle Housing	Shielded	Circular	For Male Pins	Free Hanging (In-Line)	Zinc Die Cast	Push-Twist
TE Intercontec AKA035N00590038000	Backshell Cable Clamp	IP66/IP67	UL94 V-0	Nickel	M23-17	-20 C	130 °C	Keyed	1 Backshell 1 Cable Clamp 1 Connector	Contacts Not Included	Silver	Polybutylene Terephthalate (PBT)	Receptacle Housing	Shielded	Circular	For Male Pins	Free Hanging (In-Line)	Zinc Die Cast	Push-Twist
TE Intercontec AKA034N00730255000	Backshell Cable Clamp	IP66/IP67	UL94 V-0	Nickel	M23-17	-20 C	130 °C	Keyed	1 Backshell 1 Cable Clamp 1 Connector	Contacts Not Included	Silver	Polybutylene Terephthalate (PBT)	Receptacle Housing	Shielded	Circular	For Male Pins	Free Hanging (In-Line)	Zinc Die Cast	Push-Twist

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 21.62
		10	$ 18.93
		40	$ 17.53
		80	$ 16.94
		280	$ 16.01
		520	$ 15.54

Description

General part information

AKA03 Series

17 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell, Cable Clamp

Documents

Technical documentation and resources

No documents available
