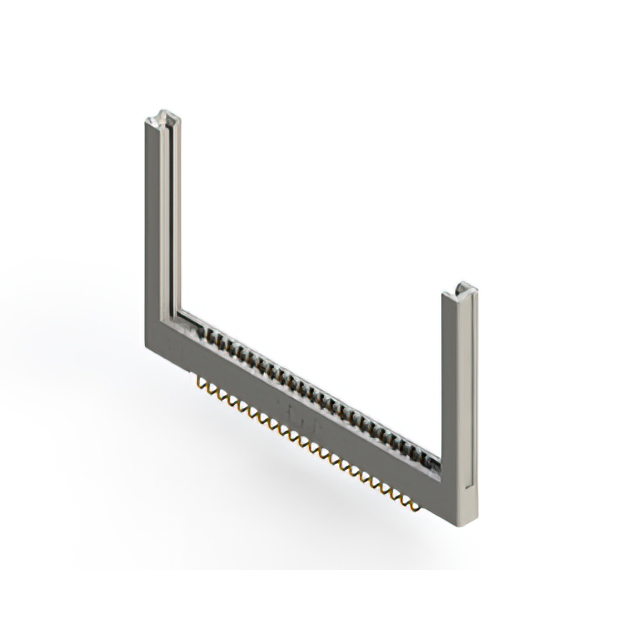

322-022-559-157

Active

EDAC Inc.

CONN EDGE SGL FMALE 22POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

322-022-559-157

Active

EDAC Inc.

CONN EDGE SGL FMALE 22POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	322-022-559-157

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Gray
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polycarbonate (PC), Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	22 positions
Number of Positions/Bay/Row [custom]	22
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

322-022 Series

Part	Card Type	Contact Type	Read Out	Termination Rows	Features	Material - Insulation	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Flange Feature	Termination	Number of Rows	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Mounting Type	Contact Finish	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 322-022-554-157	Non Specified - Dual Edge	Semi Bellows	Dual	1	Card Guides	Polycarbonate (PC) Glass Filled	Copper Alloy	-40 °C	105 ░C	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Flush Mount M3 Threaded Insert Top Opening	Solder Eyelet(s)	2	Gray	10 Áin	0.25 Ám	22	Through Hole Right Angle	Gold	44
EDAC Inc. 322-022-505-158	Non Specified - Single Edge	Semi Bellows	Single	1	Card Guides	Polycarbonate (PC) Glass Filled	Copper Alloy	-40 °C	105 ░C	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	4-40 Flush Mount Threaded Insert Top Opening	Solder Eyelet(s)	1	Gray	10 Áin	0.25 Ám	22	Through Hole	Gold	22 positions
EDAC Inc. 322-022-521-154	Non Specified - Dual Edge	Semi Bellows	Dual	1	Card Guides	Polycarbonate (PC) Glass Filled	Copper Alloy	-40 °C	105 ░C	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Solder	2	Gray	10 Áin	0.25 Ám	22	Through Hole	Gold	44	3.96 mm	0.156 in
EDAC Inc. 322-022-559-154	Non Specified - Single Edge	Semi Bellows	Single	1	Card Guides	Polycarbonate (PC) Glass Filled	Copper Alloy	-40 °C	105 ░C	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Solder	1	Gray	10 Áin	0.25 Ám	22	Through Hole Right Angle	Gold	22 positions	3.96 mm	0.156 in
EDAC Inc. 322-022-554-158	Non Specified - Dual Edge	Semi Bellows	Dual	1	Card Guides	Polycarbonate (PC) Glass Filled	Copper Alloy	-40 °C	105 ░C	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	4-40 Flush Mount Threaded Insert Top Opening	Solder Eyelet(s)	2	Gray	10 Áin	0.25 Ám	22	Through Hole Right Angle	Gold	44
EDAC Inc. 322-022-545-157	Non Specified - Single Edge	Semi Bellows	Single	1	Card Guides	Polycarbonate (PC) Glass Filled	Copper Alloy	-40 °C	105 ░C	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Flush Mount M3 Threaded Insert Top Opening	Wire Wrap	1	Gray	10 Áin	0.25 Ám	22	Through Hole	Gold	22 positions
EDAC Inc. 322-022-531-154	Non Specified - Single Edge	Semi Bellows	Single	1	Card Guides	Polycarbonate (PC) Glass Filled	Copper Alloy	-40 °C	105 ░C	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Solder	1	Gray	10 Áin	0.25 Ám	22	Through Hole	Gold	22 positions	3.96 mm	0.156 in
EDAC Inc. 322-022-501-158	Non Specified - Dual Edge	Semi Bellows	Dual	1	Card Guides	Polycarbonate (PC) Glass Filled	Copper Alloy	-40 °C	105 ░C	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	4-40 Flush Mount Threaded Insert Top Opening	Solder Eyelet(s)	2	Gray	10 Áin	0.25 Ám	22	Through Hole	Gold	44
EDAC Inc. 322-022-547-157	Non Specified - Single Edge	Semi Bellows	Single	1	Card Guides	Polycarbonate (PC) Glass Filled	Copper Alloy	-40 °C	105 ░C	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Flush Mount M3 Threaded Insert Top Opening	Wire Wrap	1	Gray	10 Áin	0.25 Ám	22	Through Hole	Gold	22 positions
EDAC Inc. 322-022-559-157	Non Specified - Single Edge	Semi Bellows	Single	1	Card Guides	Polycarbonate (PC) Glass Filled	Copper Alloy	-40 °C	105 ░C	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Flush Mount M3 Threaded Insert Top Opening	Solder	1	Gray	10 Áin	0.25 Ám	22	Through Hole Right Angle	Gold	22 positions

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 19.16

Description

General part information

322-022 Series

22 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Gray
